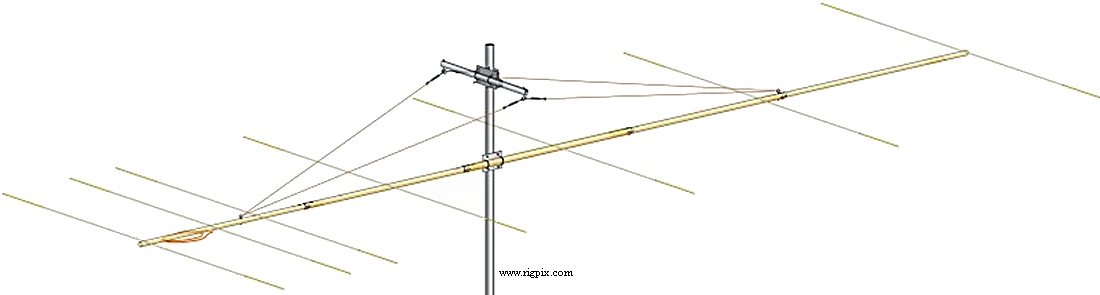

I0JXX 7JXX6
SPECIFICATIONS
| Type: | Amateur VHF yagi, 7 elements |
| Frequency range / band(s): | 50 MHz (6 m) |
| Bandwidth: | |
| Gain: | 11.25 dBd, f/b ? dB |
| Beamwidth (-3 dB): | E-plane: 38.8°
H-plane: 43.6° |
| G/T @ 30° elevation: | ? dB |
| Max power: | 1 KW |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | 0.65 m² (7 ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 9.4 m (30.84 ft) = 1.57 wl
Longest element: ? m (? ft) |
| Weight: | 9.9 Kg (21.83 lb) |
| Mast mount diameter: | 35-60 mm (1.38-2.36") |
| Manufactured: | Italy, 20xx-202x |
| Additional info: |
New price 2022 in Italy: 330.00 Euro.
|
| Related documents: | User manual (2.2 MB) |
| Reviews: | |
| Options / Accessories: |
|
|
