Force 12 C3

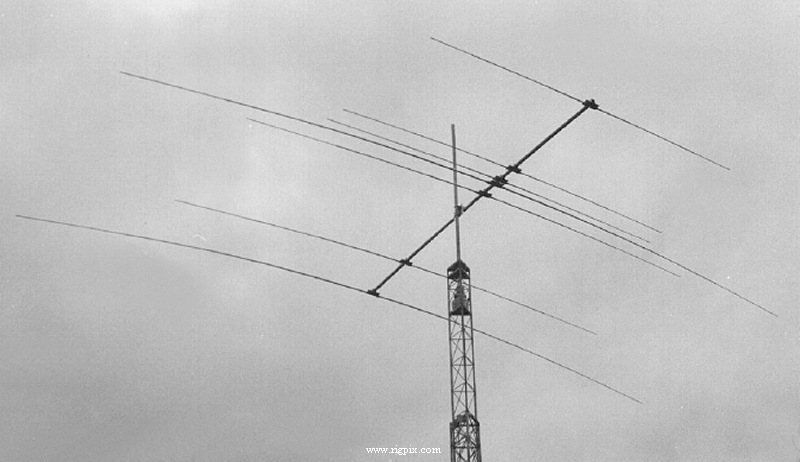

A picture of Force 12 C3

SPECIFICATIONS

Type:Amateur HF yagi, 7 elements
Frequency range / band(s):10 / 15 / 20 m (12 / 17 m with tuner)
Bandwidth:
Gain:12.3-12.6 dBi (Slightly less on WARC), f/b 14-22 dB
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:? dB
Max power:5 KW
Impedance / connector:50 ohm / ?
Wind area:0.79 m² (8.5 ft²)
Max wind resistance:44.7 m/sec (100 mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 5.5 m (? ft)
Longest element: 11.3 m (? ft)
Weight:25 Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:USA, 1993-20xx
Additional info: New price 2009 in the US: $1087.00
New price 2012 in Sweden: SEK 14950:-
Related documents:Assembly manual (1.6 Mb)
Reviews:
Options / Accessories:
- -
