Diamond A144S10

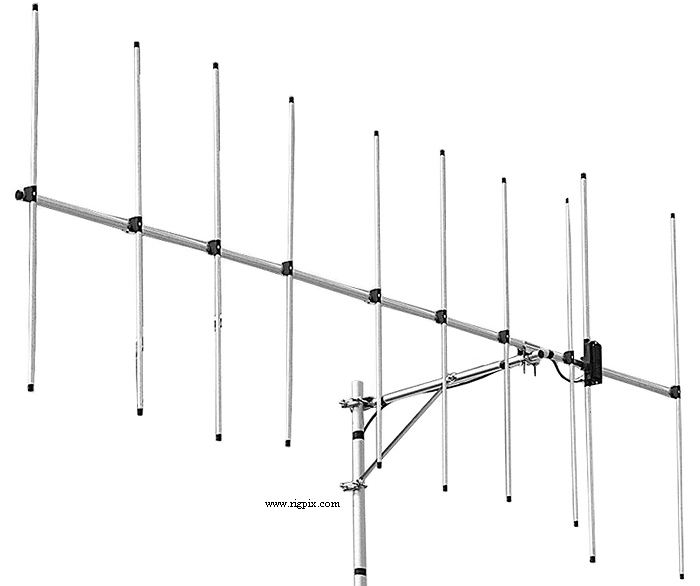

A picture of Diamond A144S10

SPECIFICATIONS

Type:Amateur VHF yagi, 10 elements
Frequency range / band(s): 144-146 MHz (Europe and Asia)
144-148 MHz (USA)
Bandwidth:
Gain:11.6 dBi
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:
Max power:50 W
Impedance / connector:50 ohm / SO-239 (M-jack)
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 2.13 m (6.99 ft) = 1.03 wl
Longest element: 1.09 m (3.58)
Weight:1.1 Kg (2.4 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:198x-19xx
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
