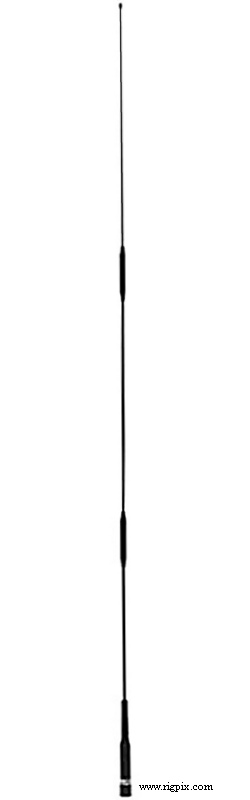

| Type: | Amateur VHF/UHF mobile antenna |
| Frequency range / band(s): | 2 m - 6/8-wave center loaded
70 cm - 3*5/8-wave |
| Bandwidth: | |
| Gain: | 2 m - 4.5 dBi
70 cm - 7.2 dBi |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 60 W |
| Impedance / connector: | 50 ohm / PL-259 (M-plug) |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Length: 1.38 m (54.33") |
| Weight: | ? g (? oz) |
| Mast mount diameter: | - |
| Manufactured: | 200x-20xx |
| Additional info: |
New price 2010 in Sweden: 820:-.
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
