Comet CA-ABC61

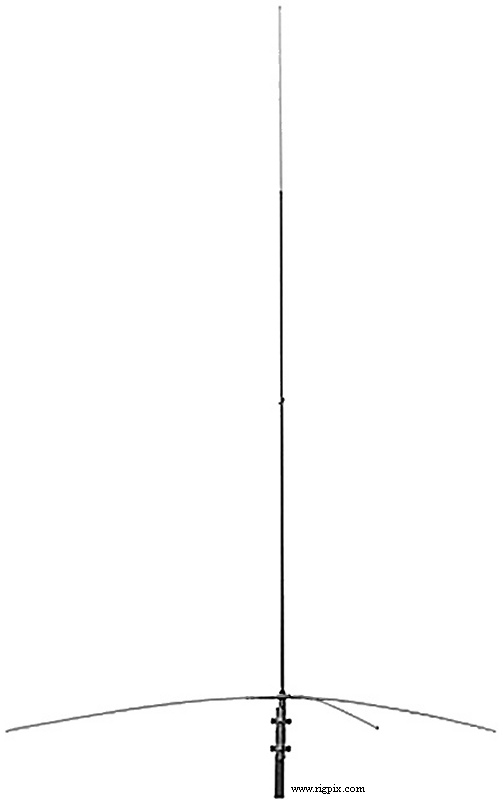

A picture of Comet CA-ABC61
Type:Amateur VHF vertical base antenna
Band(s):6 m
Gain:3.4 dBi
Beamwidth (-3 dB):Omni
Wind area:? mē
Max power:500 W (PEP)
Impedance / connector:50 ohms / SO-239
Dimensions:Heigth: 3.7 m (12.14 ft)
Radials: 1.4 m (4.59 ft)
Weight:1.6 Kg (3.53 lbs)
Other:New price 2017 in Sweden: 1250:- SEK
