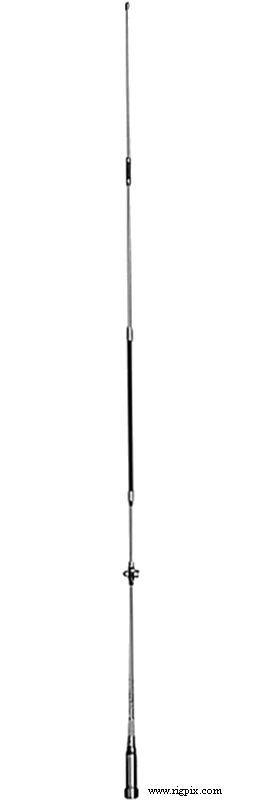

| Type: | Amateur VHF/UHF mobile antenna |
| Frequency range / band(s): | 2 m - 2*5/8-wave
70 cm - 4*5/8-wave |
| Bandwidth: | |
| Gain: | 2 m - 6 dBi
70 cm - 8.4 dBi |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 120 W |
| Impedance / connector: | 50 ohm / PL-259 (M-plug) |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Length: 2.06 m (6.76 ft) |
| Weight: | 540 g (1.19 lb) |
| Mast mount diameter: | - |
| Manufactured: | 200x-20xx |
| Additional info: |
New price 2010 in Sweden: 1050:-.
|
| Related documents: | User manual (37 KB) |
| Reviews: | |
| Options / Accessories: |
|
