Bilal ISO-40

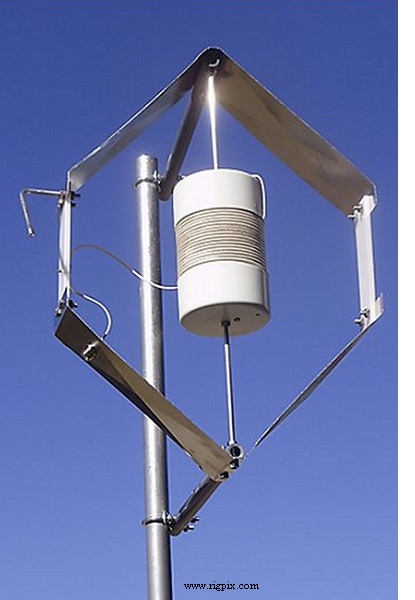

A picture of Bilal ISO-40

SPECIFICATIONS

Type:Amateur HF Isotron antenna
Frequency range / band(s):7.0-7.3 MHz (40 m)
Bandwidth:250 KHz for 2:1 SWR
Gain:- dB
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:1 KW (PEP)
300 W (Continuous)
Impedance / connector:50-75 ohm / SO-239
Wind area:0.09 m² (1 ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions W*H*D:406*559*381 mm (16*22*15")
Weight:? Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:USA, 19xx-20xx
Additional info: New price 2019 in the US: $109.95
Related documents:
Reviews:
Options / Accessories:
- -

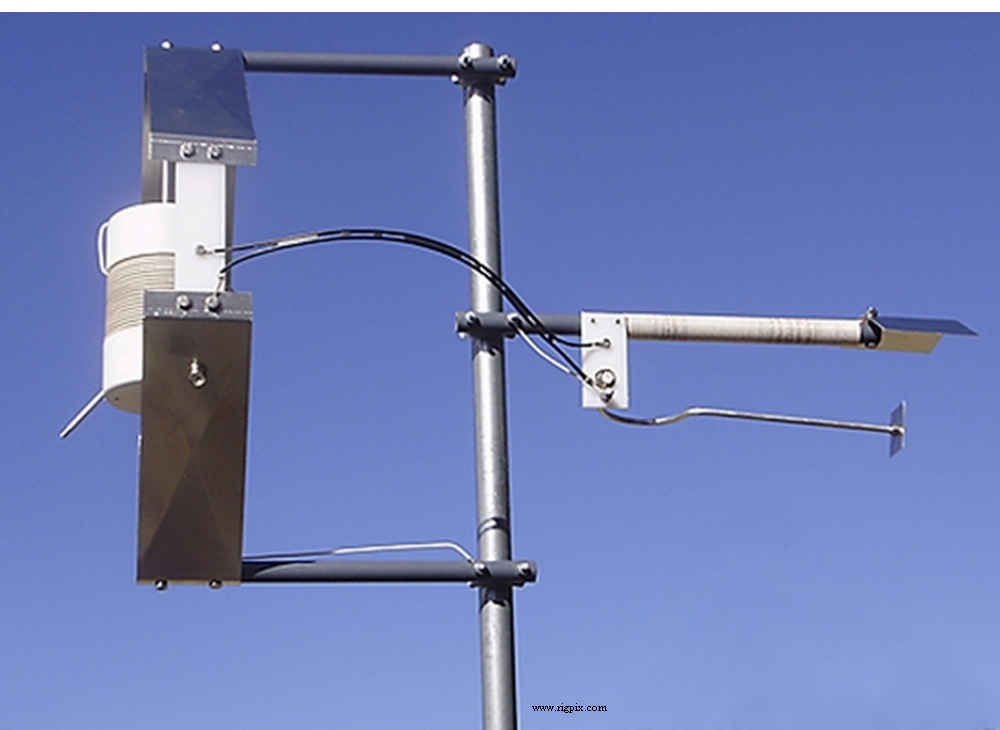

A side view picture of Bilal ISO-40
