| GENERAL |

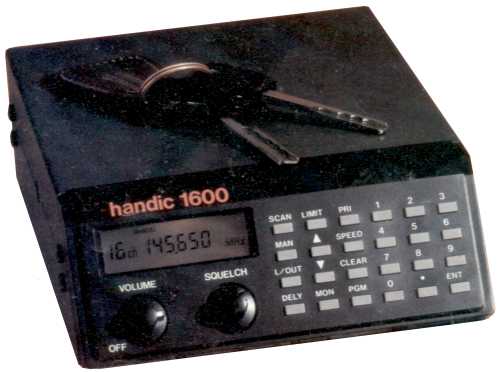

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
68-88 / 108-136 / 138-174 / 380-512 MHz
|
| Tuning steps: |
VHF: 5 KHz
Air: 25 KHz
UHF: 12.5 KHz
|
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
16 regular @ 5 or 10 channels per second
1 priority
RAM storage with 9 V battery backup
|
| Power supply: | 12 VDC |
| Current drain / power consumption: | 120 mA (Squelched) |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 130*50*180 mm (5.12*1.97*7.09") |
| Weight: | 1.1 Kg (2.42 lb), without mobile bracket |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM 108-136 MHz: 2 uV (20 dB S/N)
FM 68-88 MHz: 0.5 uV (20 dB S/N)
FM 138-174/380-512 MHz: 1 uV (20 dB S/N)
|
| Selectivity: | 18 KHz (-6 dB)
30 KHz (-50 dB) |
| Image rejection: | 50 dB @ 154 MHz |
| AF output power / speaker: | 1.5 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By GRE), 1984-198x (Discontinued) |
| Additional info: |
New price 1987 in Sweden: SEK 2635:-
|
| Related documents: |
User manual (433 KB, Eng/Swe/Ger)
FM-IF: MC3357P
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
