| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA alkaline batteries or NiCd pack) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / Phon/RCA
Fixed telescopic whip |
| Dimensions (W*H*D): | 73*198*44 mm (2.87*7.8*1.73") |
| Weight: | 840 g (1.85 lb) |

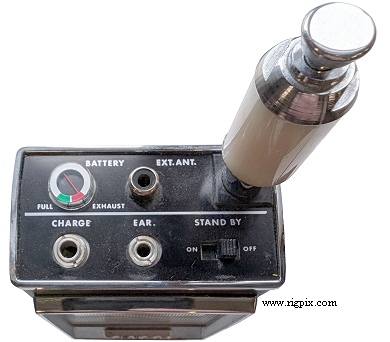

| Other features: | Battery meter. Charging jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Subminijack" (2.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~600 mW (1 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1968-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
West Germany
FTZ-Nr. K-71/68
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
