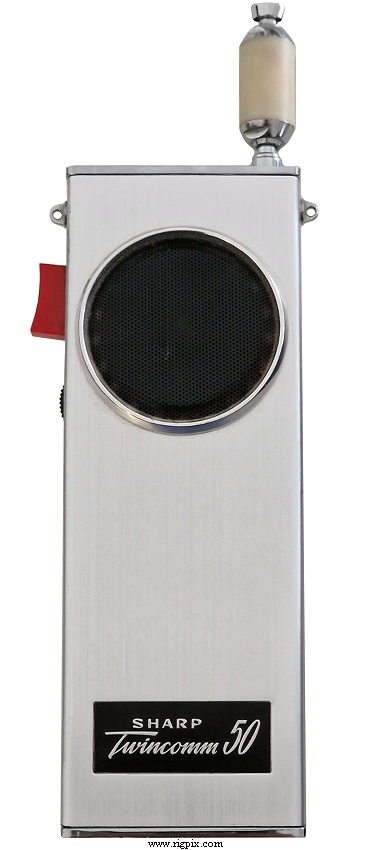

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±0.001% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight R6 / AA alkaline batteries or NiCd pack) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | - / Fixed telescopic whip |
| Dimensions (W*H*D): | 70*200*45 mm (2.76*7.87*1.77") |
| Weight: | 680 g (1.5 lb) |
| Other features: | Charging jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 8 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 250 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Subminijack" (2.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~120 mW (200 mW input) |
| Modulation system: | Class B |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation: | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Hayakawa Electric Co. Ltd.), 196x-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Product sheet (1.2 MB, In swedish)
Schematic diagram (4.5 MB)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
West Germany
FTZ-Nr: K-70/68
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
