Midland/Alan 48 Plus

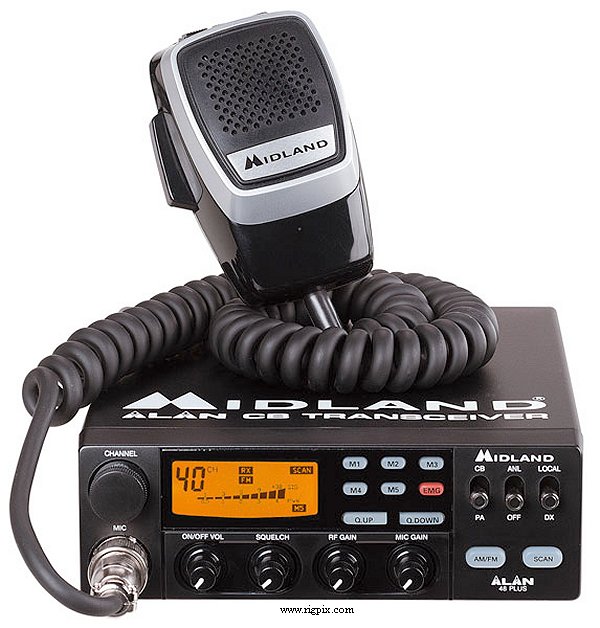

A picture of Midland/Alan 48 Plus

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver, multinorm
Frequency range: 26.965-27.405 MHz (Standard)
?-? MHz (D: FTZ)
?-? MHz (E: CEPT)
?-? MHz (F: France & Spain)
?-? MHz (U: South America)
Channels / tuning steps: 40
D: ?
E: 40
F: ?
U: 400
Mode: AM / FM
D: ?
E: FM
F: ?
U: ?
Frequency control:PLL
Frequency stability:Max ? ppm
Clarifier or Delta tune:No
Power supply:13.2 VDC ±15% (Fixed power cord)
Current drain / power consumption:RX: 250 mA (No signal)
TX: Max 1.1 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):154*50*175 mm (6.06*1.97*6.89")
Weight:1 Kg (2.2 lb)
Other features:PA. ANL. 5 memories. Night-light buttons. Scanning.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz - Ceramic filter: LT455HT
Sensitivity: AM: 0.5 uV (20 dB S/N)
FM: 0.5 uV (20 dB SINAD)
Selectivity:
Image rejection:65 dB
AF output power / speaker:? W at ?% distortion / 8 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 6-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Thailand, 1995-2001 (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents: RF final: 2SC1969
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
