| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | USA: 23 (1-23)
Sweden: 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | ±1.2 KHz |
| Power supply: | 10.5-15.5 VDC (3-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: Less than 1.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*60*215 mm (7.09**2.36*8.46") |
| Weight: | 1.69 Kg (3.73 lb), without mounting bracket and microphone |
| Other features: | PA. ANL/NB. Local/distance switch. Tone control. "Range boost". |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Selectivity: | 10 KHz (-45 dB) |
| Image rejection: | 40 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 700 ohm / 5-pin (DIN 180°) |
| Microphone input level: | 20 mV for 90% modulation @ 1 KHz |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1977 (Discontinued) |
| Main PCB: | PTBM036AOX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | New price 1976 in the US: $169.95 |
| Related documents: |
User manual (3.6 MB)
PLL: PLL02A
|

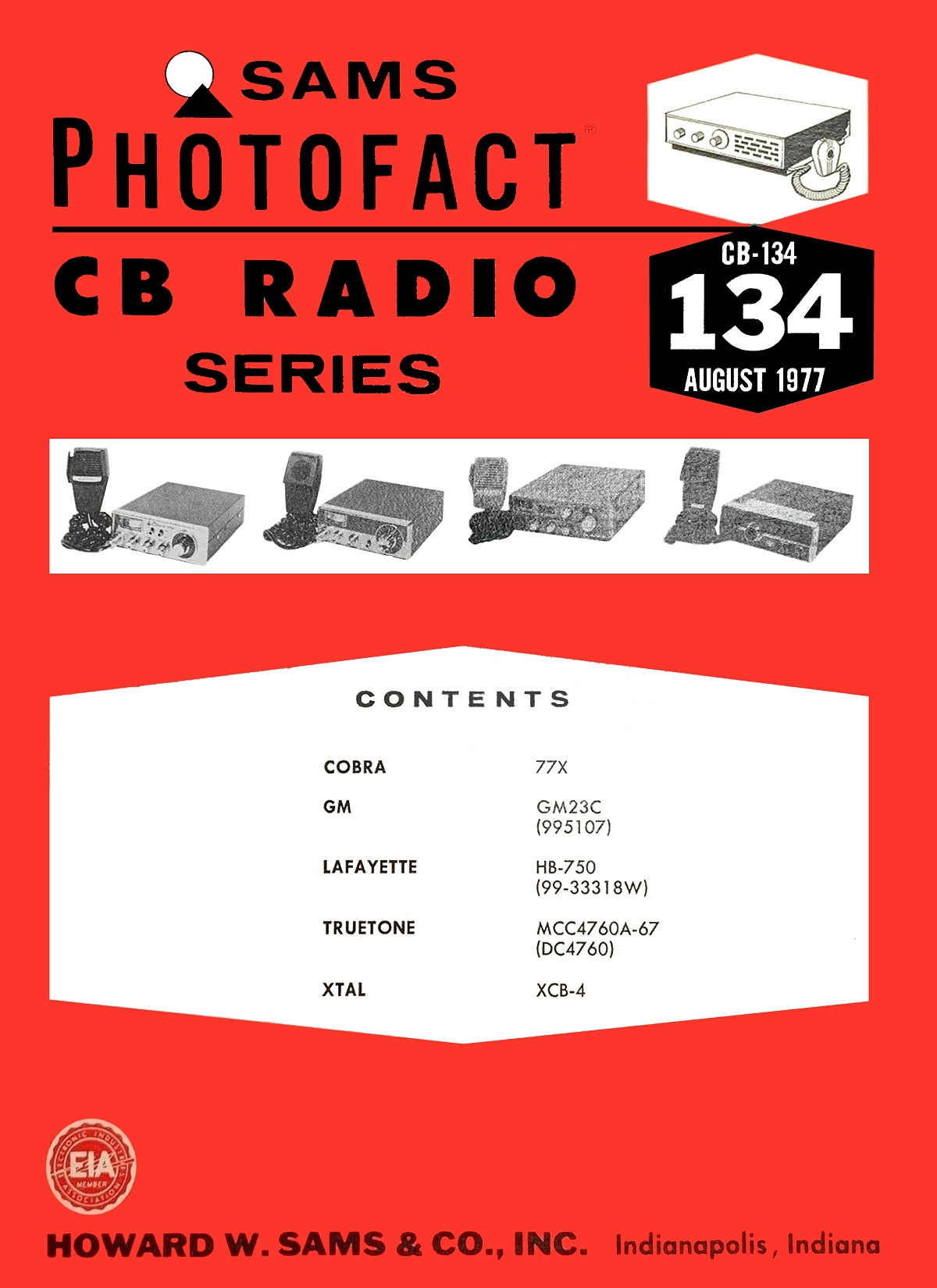

| Sams Photofact #: | CB-134 (August 1977) |
