| GENERAL |

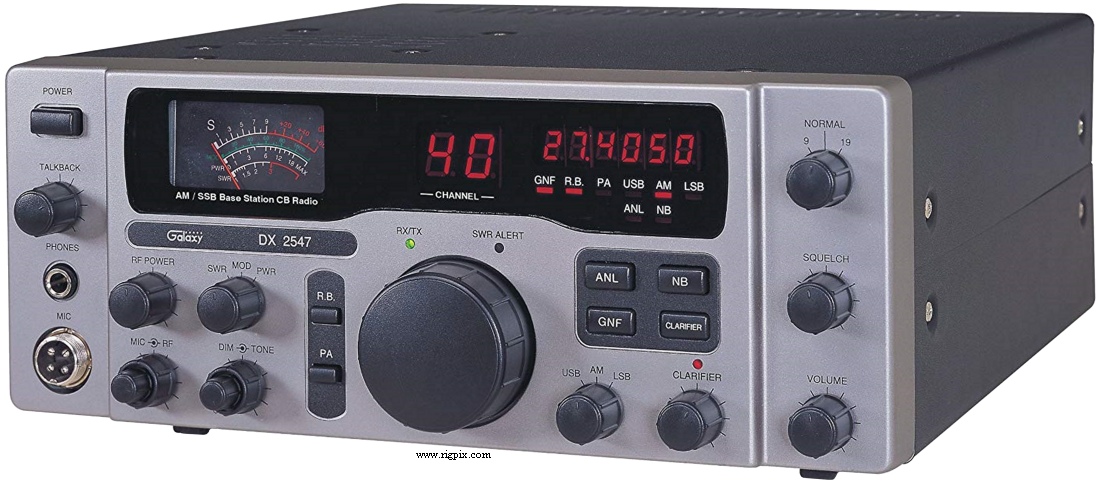

| Type: | Citizen band transceiver |
| Frequency range: |
26.965-27.405 MHz (Standard)
26.695-27.845 MHz (After simple switch modification)
|
| Channels / tuning steps: | 40 (Standard)
? (After modification) |
| Mode: | AM / SSB |
| Frequency control: | PLL (RCI-8719) |
| Frequency stability: | 0.003% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | Mains: 110-120 VAC (3-pin IEC C14 connector)
or 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.5-1 A @ 13.8 VDC
TX: Max 3.5 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 286*121*343 mm (11.25*4.75*13.5") |
| Weight: | 5.44 Kg (12 lb) |
| Other features: |
PA. Roger beep. ANL/NB. Dimmer. SWR-meter.
Channel 9/19 switch.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
SSB: 0.15 uV (10 dB S/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: |
AM: High- and low level class B
SSB: Balanced
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan and Malaysia, 1998-201x (Discontinued) |
| Main PCB: |
EPT069610Z by Ranger
Single sided with through-hole components
MOSFET version (From serial #T71100001)
EPT069611Z by Ranger
Single sided with through-hole components
|
| Sub PCBs: |
EPT0SSB30A - Channel selector board
EPT009830Z - HP Ant board
EPT253750Z - Mike jack board
EPT253770Z - DC board
EPT253780Z - DC board
EPT253790Z - Ear board
EPT254720Z - Push switch board
EPT254740Z - Display board
EPT254750Z - Push switch board
EPT254760Z - Talkback board
EPT254770Z - Dimmer/RF and mic gain board
EPT254780Z - RF / Mod board
EPT254790Z - Mode / Clarifier board
EPT360042Z - HP Ant board
EPT900040Z - Counter board
|
| Additional info: | |
| Related documents: |
User manual (465 KB)
Service manual (1.5 MB)
AF amplifier: TA7222AP
RF driver: 2SC2166
RF final: 2SC1969
MOSFET version
AF amplifier: TDA2003V
RF driver: IRF520
RF final: IRF520
|
| Known markets and approvals: |
USA
FCC ID: C2R-DX-2547
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
