Sirio SY 50-3

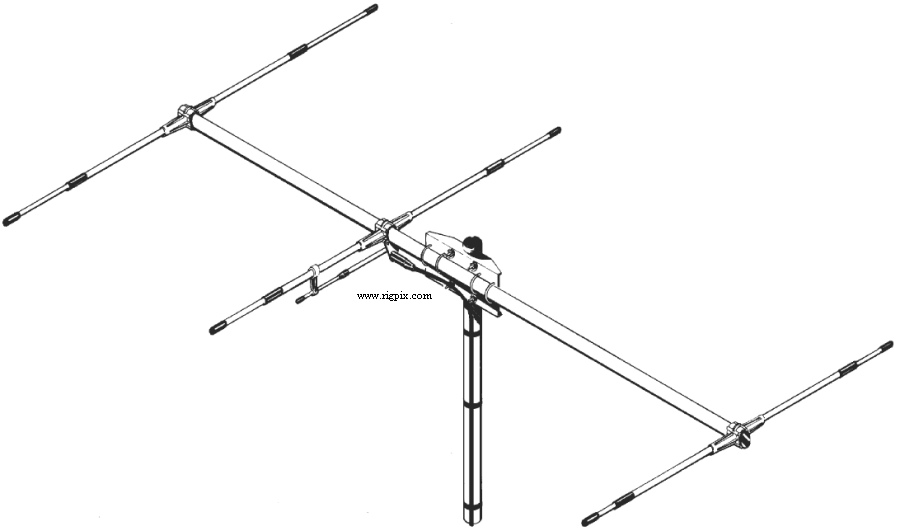

A picture of Sirio SY 50-3

SPECIFICATIONS

Type:Amateur VHF yagi, 3 elements
Frequency range / band(s):50-54 MHz (6 m), tunable
Bandwidth @ SWR:>1 MHz @ SWR <1.5:1
Gain:6.4 dBd, f/b 20 dB
Beamwidth (-3 dB):E-plane: 60°
H-plane: 93°
G/T @ 30° elevation:-
Max power:600 W (CW)
Impedance / connector:50 ohm / SO-239 (M-jack)
Wind area:0.09 m² (0.97 ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:1.9 m (6.23 ft)
Dimensions:Boom: 2.06 m (6.76 ft) = 0.34 wl
Longest element: 3.0 m (9.84 ft)
Weight:4 Kg (8.82 lb)
Mast mount diameter:35-50 mm (1.38-1.97")
Manufactured:Italy, 20xx-20xx
Additional info: New price 2020 in Sweden: SEK 1695:-.
Related documents:User manual (3.8 MB)
Reviews:
Options / Accessories:
- -
