Nagoya UT-108UV

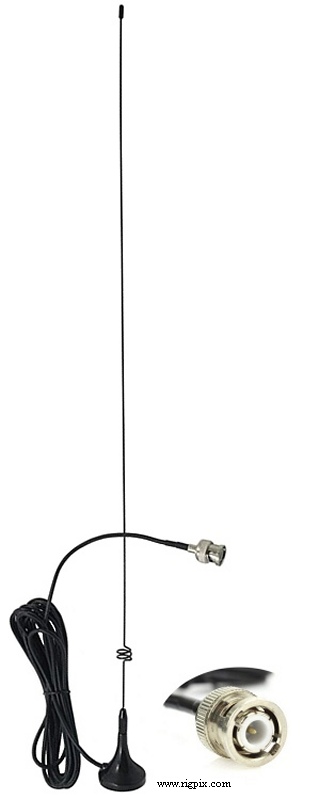

A picture of Nagoya UT-108UV
Type:Amateur VHF/UHF mobile antenna
Band(s):TX: 2 m/70 cm
RX: 79-950 MHz
Gain:2 m - 2.15 dBi (1/4-wave)
70 cm - 3 dBi (5/8-wave?)
Max power:10 W
Impedance/connector:50 ohms / BNC plug on 3 m (9.8 ft) of RG-174
Length:51 cm (20.1")
Weight:85 gr (3 oz)
Manufactured:Taiwan, 200x-201x
Other:Miniature magmount, about 30 mm (1.18") diameter
New price 2016 in Sweden: 135:- SEK
