Diamond X-300

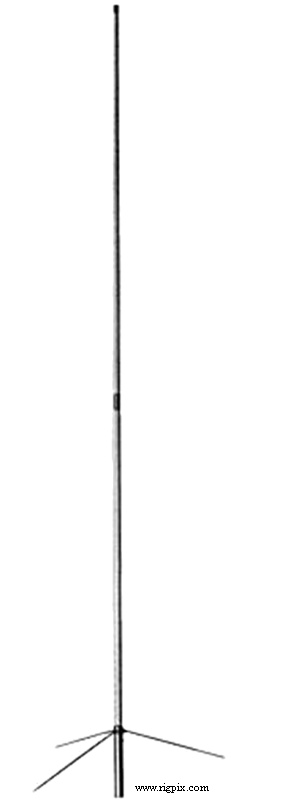

A picture of Diamond X-300

SPECIFICATIONS

Type:Amateur VHF/UHF vertical base antenna
Frequency range / band(s): 144-146 MHz (2 m) - 2*5/8-wave
430-440 MHz (70 cm) - 5*5/8-wave
Bandwidth:
Gain: 2 m - 6.5 dB
70 cm - 9 dB
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:200 W
Impedance / connector:50 ohm / SO-239 (M-jack)
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Height: 3.1 m (10.17 ft)
Weight:1.5 Kg (3.31 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:198x-20xx
Additional info: New price 2010 in Sweden: SEK 1400:-
New price 2021 in Sweden: SEK 995:-
Related documents:
Reviews:
Options / Accessories:
- -
