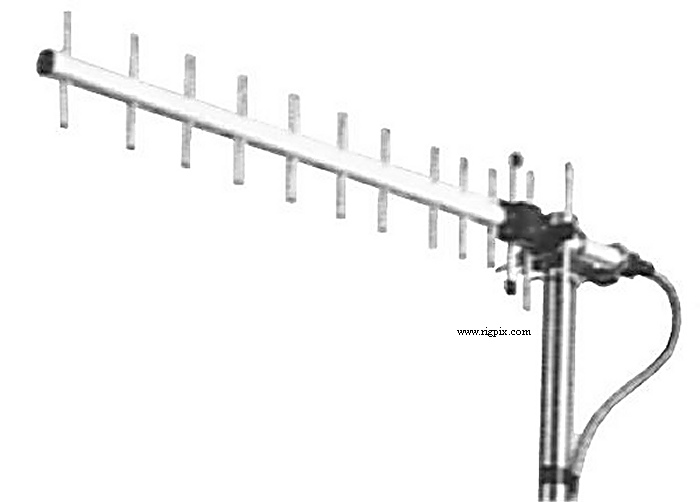

Diamond A1200S12
SPECIFICATIONS
| Type: | Amateur UHF yagi, 12 elements |
| Frequency range / band(s): | 1260-1300 MHz (23 cm) |
| Bandwidth: | |
| Gain: | 14.1 dBi |
| Beamwidth (-3 dB): | E-plane: ?°
H-plane: ?° |
| G/T @ 30° elevation: | |
| Max power: | 50 W |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 74 cm (2.43 ft) = 3.18 wl
Longest element: 14 cm (5.51") |
| Weight: | 600 g (1.32 lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 198x-19xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
