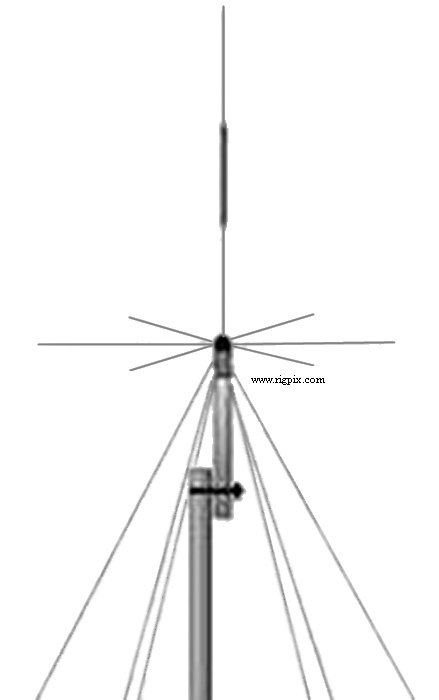

Comet DS-150S
SPECIFICATIONS
| Type: | HF/VHF/UHF discone antenna |
| Frequency range / band(s): |
RX: 25-1500 MHz
TX: 6 m / 2 m / 70 cm / 23 cm
|
| Bandwidth: | |
| Gain: | Max 5.12 dBi |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 100 W |
| Impedance / connector: | 50 ohm / SO-239 (M-jack) |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Height: 1.43 m (4.69 ft) |
| Weight: | 1.8 Kg (3.97 lb) |
| Mast mount diameter: | 30-62 mm (1.18-2.44") |
| Manufactured: | Japan, xxxx-xxxx |
| Additional info: | |
| Related documents: | User manual (72 KB) |
| Reviews: | |
| Options / Accessories: |
|
|
