Icom CR-282

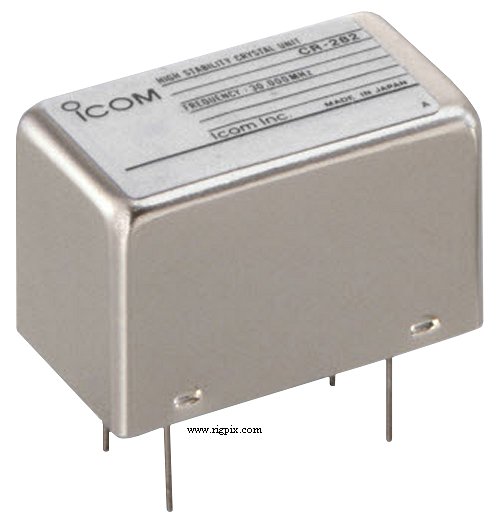

A picture of Icom CR-282
Type:High stability crystal unit
Oscillator frequency:30.0 MHz
Output level:? Vpp
Performance:±0.5 ppm, -30°C to +60°C (-22 to +140°F)
Voltage:12 VDC, supplied by the radio
Current drain:Cold: ~400 mA
Warm: ~40 mA
Dimensions (W*H*D):? mm (?")
Weight:? g (? oz)
Manufactured:Japan, 199x-xxxx
Other:
Related documents:
Reviews:
Applicable radios: IC-R75
IC-706MKIIG
IC-732
IC-736
IC-746
IC-765
IC-775
IC-775 DSP
and possibly other radios...
