| GENERAL |

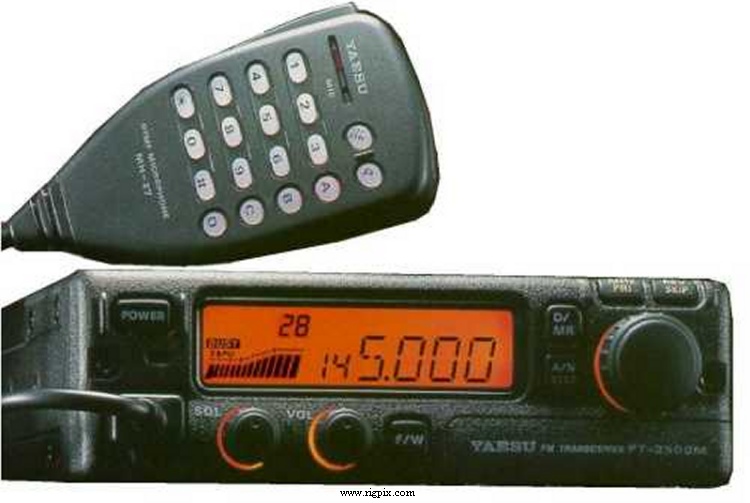

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 140-174 MHz
USA
TX: 144-148 MHz
RX: 140-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz |
| Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
28 regular with alpha tags (4 characters)
1 call
1 scan edge pair (PMS)
Priority function
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±600 KHz (Programmable) |
| Power supply: | 13.8 VDC ±10% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: 600 mA
TX: Max 12 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 160*50*180 mm (6.3*1.97*7.09") |
| Weight: | 1.5 Kg (3.31 lb) |
| Other features: |
MIL-SPEC 810-C. 1750 Hz call tone (Europe). ARS. CTCSS/PL encoder.
DTMF pager.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 3.5 W at 10% distortion / 4 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 20 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 199x-2000 (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (4.6 MB)
Service manual (13.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FP-800
FRC-6
FTS-17A
MH-26G8J
MH-27A8J
SP-7
|
AC power supply. 13.8 VDC, 20 A
DTMF pager unit
CTCSS/PL decoder unit
Hand microphone with up/down and tone call buttons
Hand microphone with up/down buttons and DTMF keypad
External speaker
|
|
