| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 0.5-30 / 50-54 MHz
RX: 0.5-30 / 50-54 MHz
|
| Tuning steps: | Down to 1 Hz |
| Frequency stability: | |
| Mode: | AM / FM / SSB / CW / Data |
| Channels / memory management: |
? regular
|
| Repeater shift / offset: | |

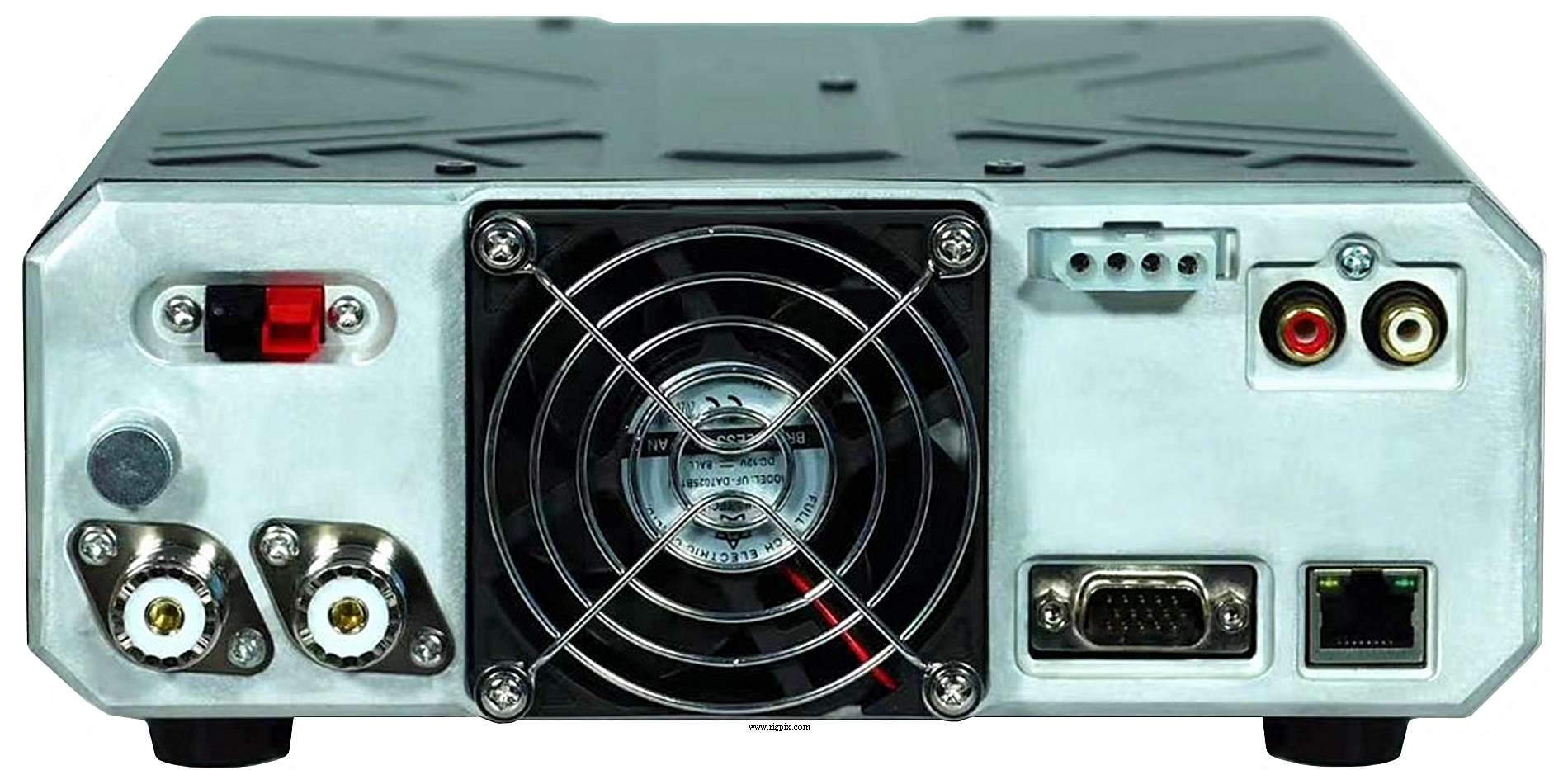

| Power supply: | 9-15 VDC (Anderson powerpole) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm (20-150 ohm ATU on) / Two SO-239 |
| Dimensions (W*H*D): | Main unit: ? mm (?")
Controller: ? mm (?") |
| Weight: | Main unit: ? Kg (? lb)
Controller: ? Kg (? lb) |
| Other features: |

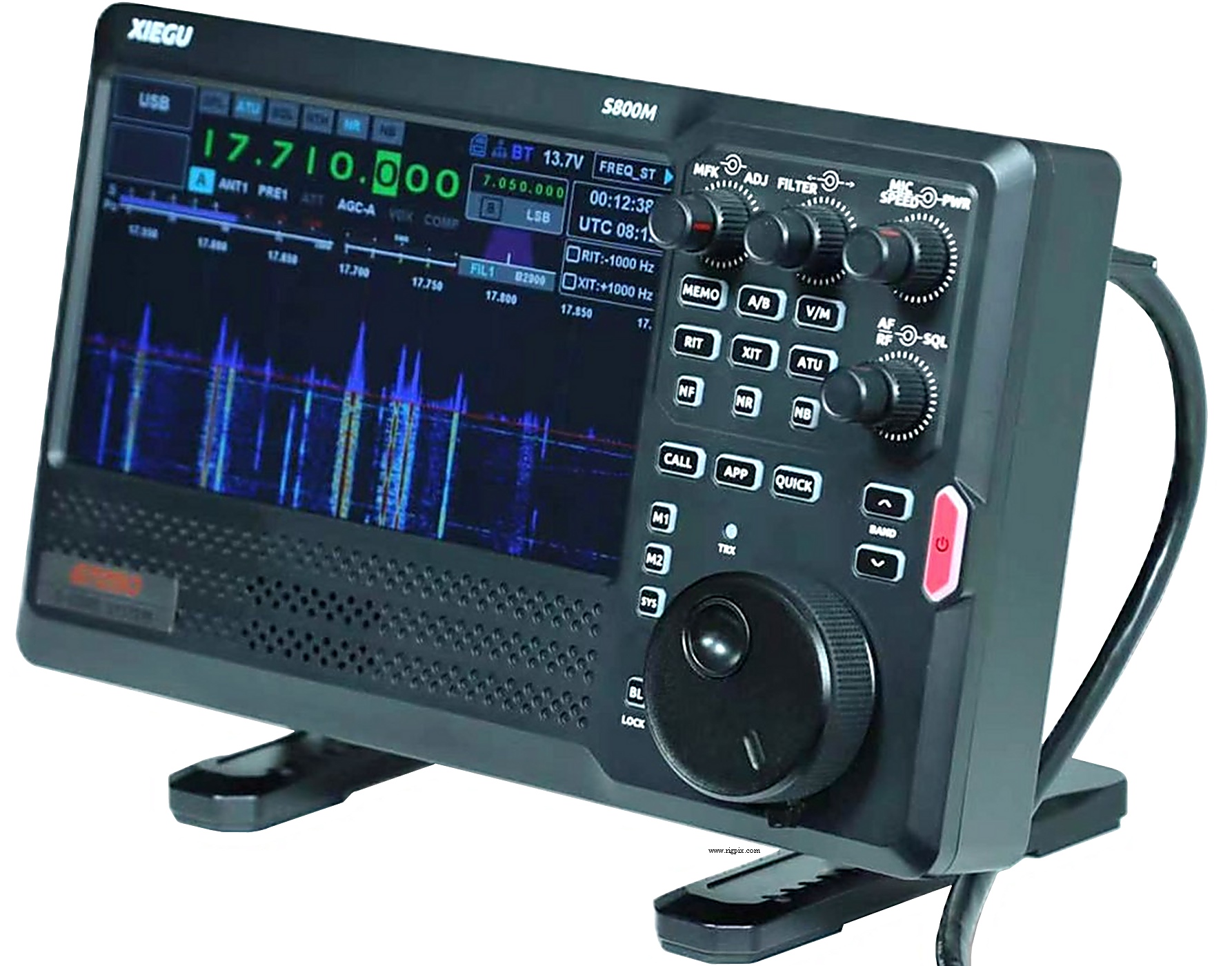

7" color touch screen. Auto-ATU. Spectrum scope and waterfall.
Voice recorder. Digital noise reduction, noise blanker and
noise-threshold processing. Adjustable digital receive filters.
Network-based remote baseband signal transmission. USB.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Direct sampling SDR
|
| Sensitivity: |
AM: 2 uV (No S/N reference)
FM: 0.2 uV (No SINAD reference)
SSB: 0.2 uV (No S/N reference)
CW: 0.2 uV (No S/N reference)
0.028 uV / -138 dBm (MDS)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m |
|---|
| AM: | ? W | ? W |
| FM: | 100 W | 90 W |
| SSB (PEP): | 100 W | 90 W |
| CW/RTTY: | 100 W | 90 W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance/connector: | 200 ohm to 10 Kohm (600 ohm nominal) / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2026-202x |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
