| GENERAL |

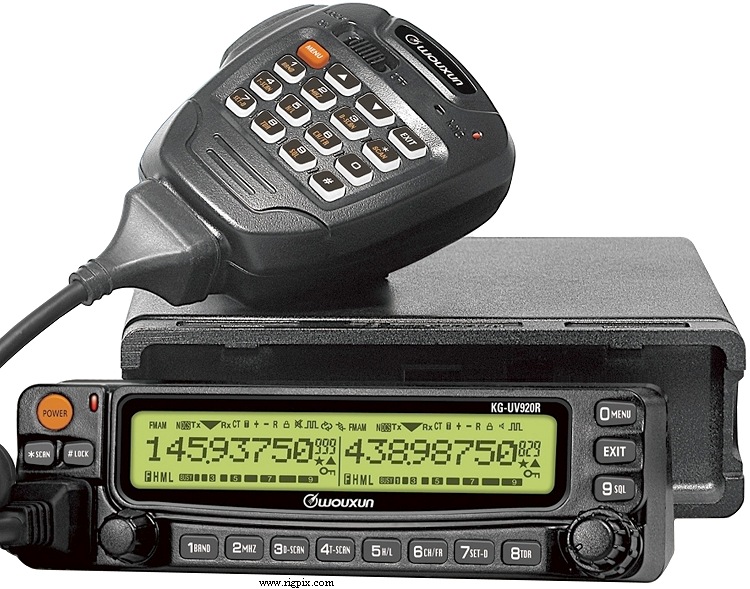

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-480 MHz
RX: 65-108 / 136-174 / 400-480 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
999 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 500 mA (Standby)
TX: Max 9 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*44*207 mm (5.51*1.73*8.15") |
| Weight: | 1.9 Kg (4.19 lb) |
| Other features: |
Detachable front panel. Cross-band repeater. DTMF-microphone. Caller ID.
PC-programmable. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 25 W | 5 W |
| 70 cm: | 40 W | 20 W | 5 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2011-2013 (Discontinued) |
| Additional info: |
Superseeded by KG-UV920P
New price 2013 in Sweden: SEK 2995:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
