| GENERAL |

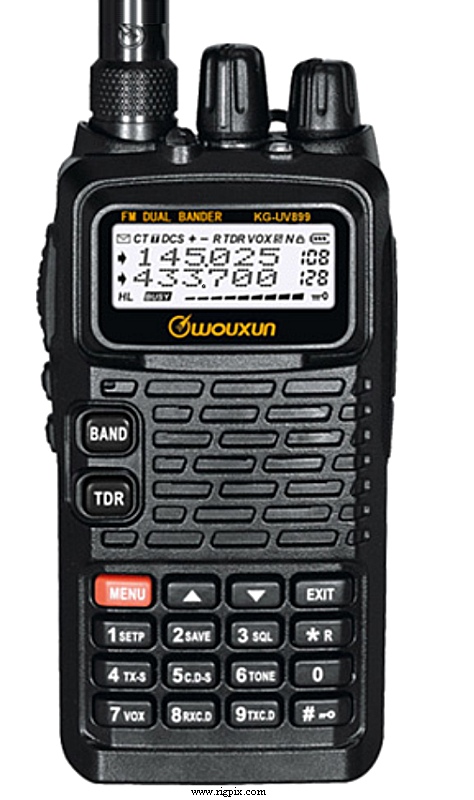

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 230-260 / 400-520 MHz
RX: 76-108 / 136-174 / 230-260 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -30 to +60°C (-22 to 140°F) |
| Mode: | TX: FM
RX: FM / WFM |
| Channels / memory management: |
199 regular with alpha tags
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: |
CTCSS/PL and DCS with tone scan. LED flashlight.
VOX. PC programmable. Roger beep. Voice guide.
IP55 waterproof. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 65 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| VHF: | 5 W | 1 W |
| UHF: | 4 W | 1 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BLO-005
BLO-006
|
Li-Ion battery pack. 7.4 V, 1300 mAh / 9.62 Wh
Li-Ion battery pack. 7.4 V, 1700 mAh / 12.58 Wh
|
|
