| GENERAL |

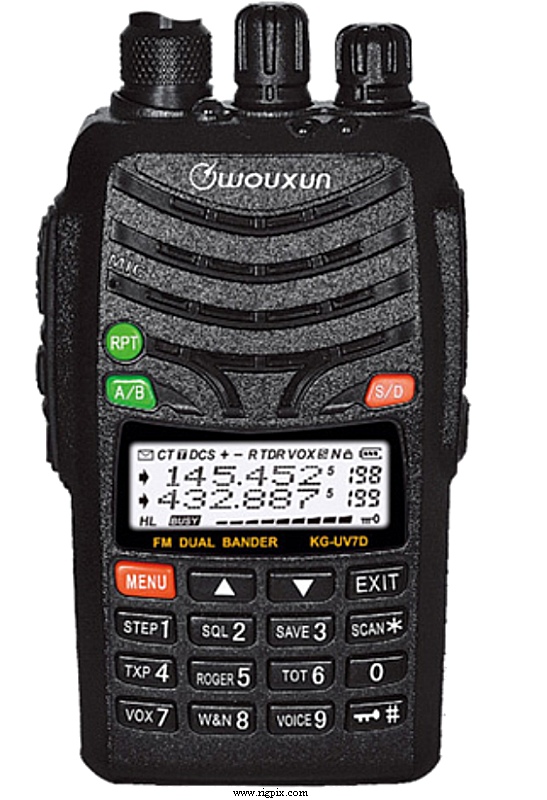

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
2 m / 70 cm version
TX: 136-174 / 400-480 MHz
RX: 76-108 / 136-174 / 400-480 MHz
6 m / 2 m version
TX: 50-54 / 136-174 MHz
RX: 50-54 / 76-108 / 136-174 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
199 regular with alpha tags
Scanning
Priority function
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 65*119*39 mm (2.56*4.68*1.53") |
| Weight: | 252 g (8.89 oz) |
| Other features: |
CTCSS/PL and DCS. DTMF encode/decode. VOX. 1750 Hz tone call.
Roger beep. Voice guide. PC programmable. Cloning. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.2 uV (Threshold) |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacnet channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| VHF: | 7 W | ? W |
| UHF: | 5 W | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -30 dBm |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ANO-032
BLO-004
BLO-007
BLO-007-USB-C
CHA-003
OTH-003
OTH-005
|
Flexible antenna
Li-Ion battery pack. 7.4 V, 1700 mAh / 12.58 Wh
Li-Ion battery pack. 7.4 V, 2600 mAh / 19.24 Wh
Li-Ion battery pack. 7.4 V, 2600 mAh / 19.24 Wh
Desktop charger
Belt clip
Hand strap
|
|
