WiNRADiO WR-G305e

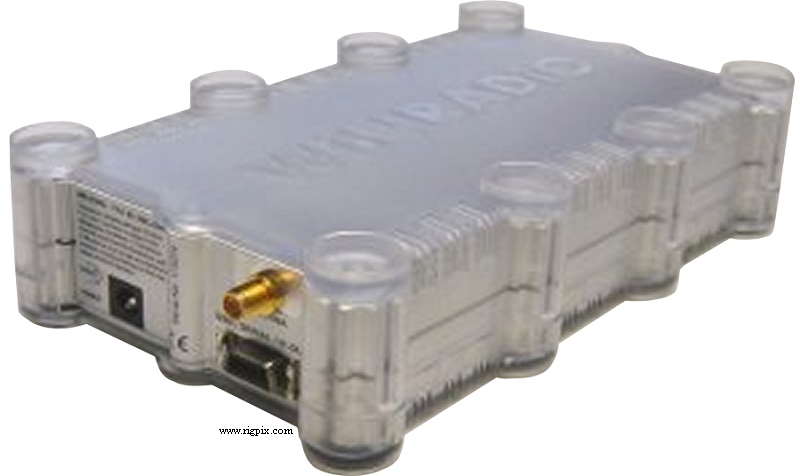

A picture of WiNRADiO WR-G305e

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range: 0.009-1800 MHz (1700-3500 MHz option)
Tuning steps:Down to 1 Hz
Frequency stability:10 ppm @ 0 to 60C (32 to 140F)
Mode:AM / AMN / AMS / FMN / SSB / CW (WFM, DRM and APCO P25 options)
(DSB / ISB option with Professional demodulator)
Channels / memory management: 60 channels per second
Power supply:11-13 VDC (Barrel connector)
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):96*41*164 mm (3.78*1.61*6.46")
Weight:467 g (16.4 oz)
Other features: 0 dBm IP3. Spectrum scope. Tracking front-end filters. 12 KHz output.
USB 1.0 and 2.0. (RS-232C option). "Digital bridge" compatible.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 109.65 MHz
2nd IF: 12 KHz (SDR demodulator)
Sensitivity: AM/AMS (10 dB S/N)
0.15-500 MHz: 1.7 uV
500-1800 MHz: 1.85 uV
FM (12 dB SINAD)
0.15-500 MHz: 0.7 uV
500-1800 MHz: 0.8 uV
FMW (WFM) (12 dB SINAD)
0.15-500 MHz: 2.0 uV
500-1800 MHz: 2.0 uV
SSB (10 dB S/N)
0.15-500 MHz: 0.35 uV
500-1800 MHz: 0.37 uV
CW (10 dB S/N)
0.15-500 MHz: 0.2 uV
500-1800 MHz: 0.25 uV

(Typical improvement by 2-3 dB on AM/SSB/FM and up to
10 dB on CW with the Professional demodulator option)
Selectivity: AM
6 KHz (-6 dB)
AMN
4 KHz (-6 dB)
AMS
4 KHz (-6 dB)
FM3
3 KHz (-6 dB)
FM6
6 KHz (-6 dB)
FMN
12 KHz (-6 dB)
FMW (WFM), optional
230 KHz (-6 dB)
SSB
2.5 KHz (-6 dB)
CW
500 Hz (-6 dB)

(Continuously adjustable 1-15000 Hz with Professional demodulator option)
Image rejection:60 dB
AF output power / speaker:PC software demodulation
External speaker connector:




MISCELLANEOUS
Manufactured:20xx-20xx
Additional info: External unit
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
WR-DNC-3500
WR-G3E-SIO
WR-G3E-WMB
WR-G305-WFM
-
-
1700-3500 MHz downconverter
RS-232C option
Wall mounting bracket
Internal Wide FM unit
Advanced digital suite
Professional demodulator
