| GENERAL |

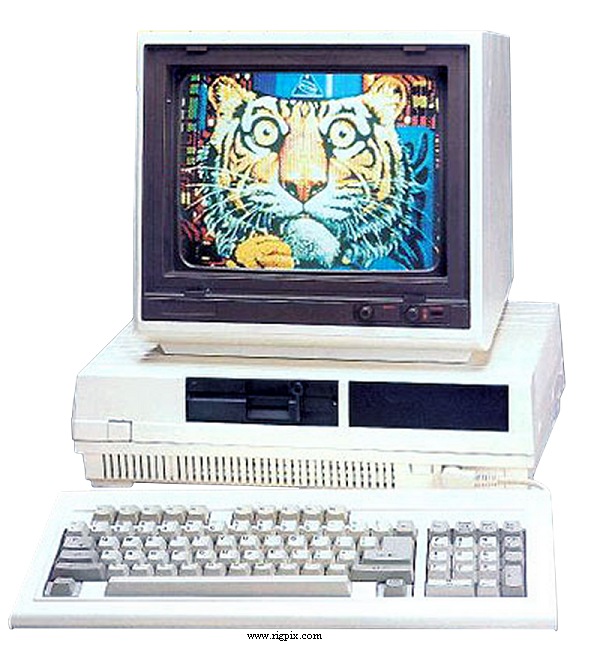

| Type: | 16-bit home computer |
| CPU: | Intel 8088 @ 4.77 MHz |
| Operating system(s): | MSX2, MS-DOS 2.11, CP/M |
| Memory: | ROM: 16 KB
RAM: 256 KB (Expandable to 640 KB) |
| Power supply: | Mains (Internal transformer with 16 VAC, 0.5 A and 16 VAC, 2.5 A outputs) |
| Current drain / power consumption: | |
| Dimensions (W*H*D): | 408*120*300 mm (16.1*4.72*11.81") |
| Weight: | ? Kg (? lb) |
|
|
|
|
| I/O |
| Keyboard: | External QWERTY |
| Graphics: |
Yamaha V9938 with 16 KB VRAM (CGA) and 128 KB VRAM (MSX2 hi-resolution)
MSX2: 256*212 pixels (256 colors) or 512*212 pixels (16 colors)
CGA: 40*24 or 80*24 rows (Text) or 640*200 pixels (2 colors)
|
| Audio: |
MS-DOS
PC-sound
MSX2
3 channels, 8 octaves, white noise
|
| Storage: |
One or two 360 KB 5.25" disk drives
or one disk drive and a 20 MB HD
|
| External I/O ports: |
| Audio: | Phono/RCA |
| Game: | DA-15s / DB-15f (Supports two analog joysticks) |
| Keyboard: | 5-pin DIN |
| Mouse / Light pen: | DE-9p / DB-9m (Bus-mouse?) |
| Printer: | DB-25 (Centronics compatible) |
| Video 1: | DA-15p / DB-15m (RGB) |
| Video 2: | Phono/RCA (Composite) |
|
| Other: | One internal ISA expansion slot |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong (By Bondwell), 1986-1987 (Discontinued) |
| Additional info: |
This is an odd hybrid between MSX2 and IBM-PC compatible.
An enhanced version of GW-Basic (v3.2) was included with
the system for access to some of the extended MSX2 hardware.
|
| Related documents: |
User manual (55 MB)
Schematic diagrams (1.2 MB)
Sound generator: AY-3-8912
|
| Modifications and fixes: | |
| Notable "ham" software: | Any MS-DOS compatible software of this era |
| Reviews: | |
| Options / Accessories: |
SVI-109P
SVI-110P
SVI-811
SVI-812
SVI-813
SVI-814
SVI-815
SVI-816
SVI-817
|
Quickshot IX joyball
Quickshot X joystick
MSX(1) game adapter ISA-card with Z80A CPU plus external module
Multifunction card (RTC, RS-232C and 384 KB extra RAM)
Cooling fan
RF adapter
Monitor cable. DB-15 to 21-pin peritel (Analog)
Monitor cable. DB-15 to 8-pin RGB (Analog)
Bridge cable. DB-15 to DB-9 digital RGBI monitor
|
|
