| GENERAL |

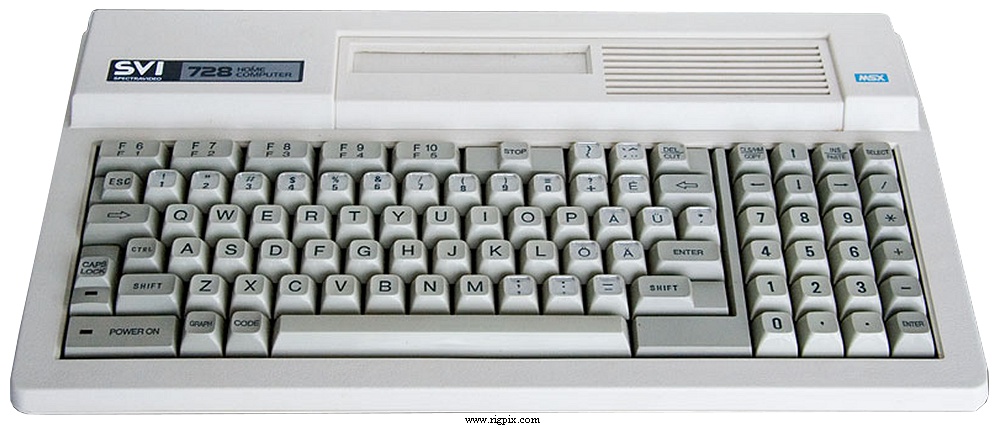

| Type: | 8-bit home computer |
| CPU: | Zilog Z80A @ 3.58 MHz |
| Operating system(s): | MSX-Basic 1.0 by Microsoft
MSX-DOS and CP/M options |
| Memory: | ROM: 32 KB (Expandable to 96 KB)
RAM: 64 KB (Expandable to 144 KB) |
| Power supply: | 9 and 16 VAC (External 36 W PSU) |
| Current drain / power consumption: | |
| Dimensions (W*H*D): | 405*77*215 mm (15.94*3.03*8.46") |
| Weight: | 2.32 Kg (5.12 lb) |
|
|
|
|
| I/O |
| Keyboard: | Integrated |
| Graphics: |
Texas Instruments TMS9929A (PAL/SECAM)
Texas Instruments TMS9918A (NTSC)
16 KB VRAM
Text:
Mode 0: 40*24 characters
Mode 1: 32*24 characters
Graphics:
Mode 2: 256*192 pixels, 16 colors
Mode 3: 64*48 pixels, 16 colors
32 sprites
|
| Audio: | 3 channels, 8 octaves (AY-3-8910 chip) |
| Storage: |
Tape recorder
Optional 5.25" floppy
|
| External I/O ports: |
| Audeo: | Phono/RCA |
| Cartridge slot: | 50-pin edge connector |
| Expansion interface: | Male 50-pin connector (For optional floppy drive) |
| General purpose: | Two DE-9p /DB-9m (Joysticks and other peripherals) |
| Printer: | 14-pin Centronics |
| RF out: | Phono/RCA |
| Tape I/O: | 8-pin DIN |
| Video: | Phono/RCA (Composite) |
|
| Other: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong (By Bondwell). Designed in the USA, 1984-198x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (4.4 MB)
Service manual (8 MB)
Sound generator: AY-3-8910
|
| Modifications and fixes: | |
| Notable "ham" software: | |
| Reviews: | |
| Options / Accessories: |
SVI-101
SVI-102
SVI-106
SVI-107
SVI-206
SVI-207
SVI-208
SVI-209
SVI-707
SVI-727
SVI-737
SVI-747
SVI-757
SVI-767
|
Quickshot I, MSX joystick
Quickshot II, MSX joystick
Quickshot V, MSX joystick
Quickshot VII, MSX joycard
Monitor cable, RCA/Phono
Printer cable for MSX computers
Cassette cable for MSX computers
RS-232C cable
5.25" MSX disk drive. DSDD, 320 KB
80 column cartridge
MSX auto-answer modem with RS-232C interface
64 KB RAM cartridge
RS-232C interface cartridge
MSX data cassette recorder
|
|
