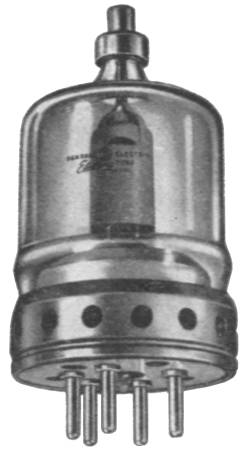

| Type: | Tetrode |
| f: | 120 MHz |
| Class: | C |
| Max power output: | CW: 500 W, AM: 380 W (both max input) |
| Drive power: | CW: 2.5 W, AM: 3.3 W |
| Heater voltage: | 5 V |
| Heater current: | 6.5 A |
| Plate voltage: | 3000 V |
| Plate current: | 225 mA |
| Plate dissipation: | 125 W |
| Screen voltage: | 400 V | Manufactured: | 1947-19xx |
| Other: | Requires some amount of forced air cooling |
| Extras: |
