| GENERAL |
| Type: | Amateur SHF transverter |
| Frequency range / band: | 24 GHz (1.2 cm) |
| IF: | 2.4-2.5 GHz (13 cm) |
| Frequency stability: | ± ? ppb @ -10 to +55°C (14 to 131°F) |
| Power supply: | 12 VDC ±15% (Via 10-pin ACC connector) |
| Current drain / power consumption: | RX: Less than ? mA
TX: Less than ? A |

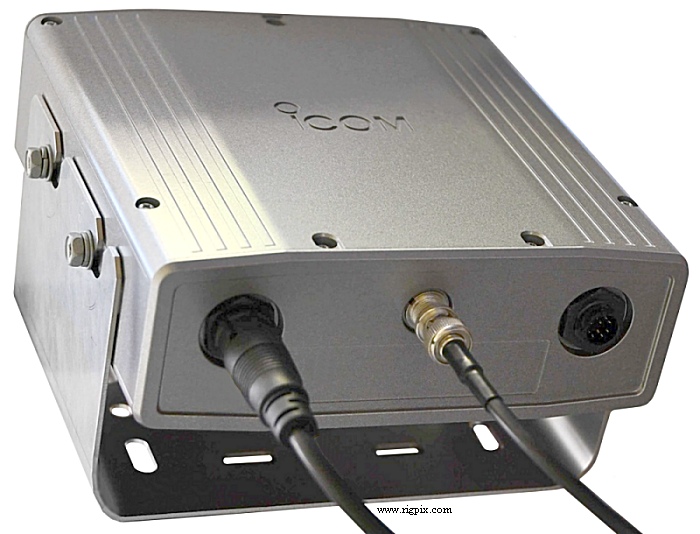

| Impedance / connectors: | 50 ohm / Three SMA (And a BNC for the 10 MHz reference) |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Sensitivity: |
| AM: | ? uV / ? dBuV (10 dB S/N) |
| FM: | ? uV / ? dBuV (12 dB SINAD) |
| SSB/CW: | ? uV / ? dBuV (10 dB S/N) |
|
| Gain: | ? dB |
| Noise figure: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| AM: | 125 mW |
| FM: | 500 mW |
| SSB (PEP): | 500 mW |
| CW: | 500 mW |
| DV/DD: | 500 mW |
| ATV: | 500 mW |
|
| Spurious emissions: | Less than ? uW |
| RF drive power: | ? mW |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2026-202x |
| Additional info: |
Primarily made for IC-905 and connects to the outdoor RF unit.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-?
AH-?
|
Panel antenna
Parabolic antenna
|
|
