Type: | Amateur multimode radio decoder |
Modes (depending on firmware): | RTTY/CW/ASCII/AMTOR/SITOR |
GPS/APRS functions: | No |
Mailbox: | No |
Radio ports: | 1 |
Data rate over radio: | 45-300 bd |
Voltage: | 11-14 VDC |
Current drain: | Max 700 mA |
Dimensions (W*H*D): | 260*75*185 mm (10.24*2.95*7.28") |
Weight: | 1.5 Kg (3.31 lbs) |
Manufactured: | Japan, 1988-19xx (Discontinued) |

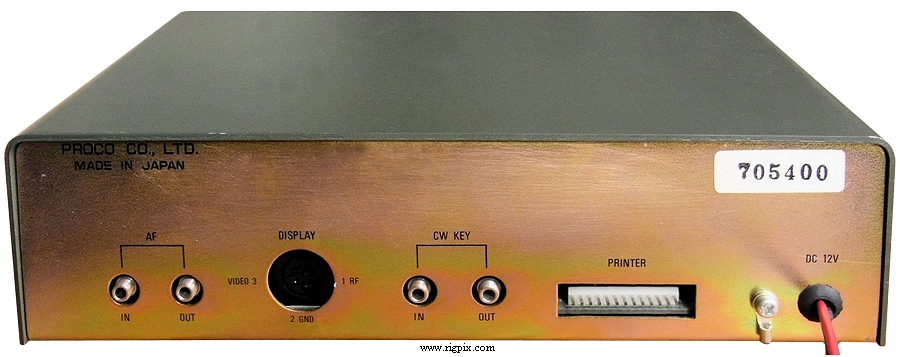

Other: | 2*40 character LCD display. RF/Video output. Centronics printer port. |
Related documents: | |
Modifications: | |
