Ten-Tec Corsair (560)

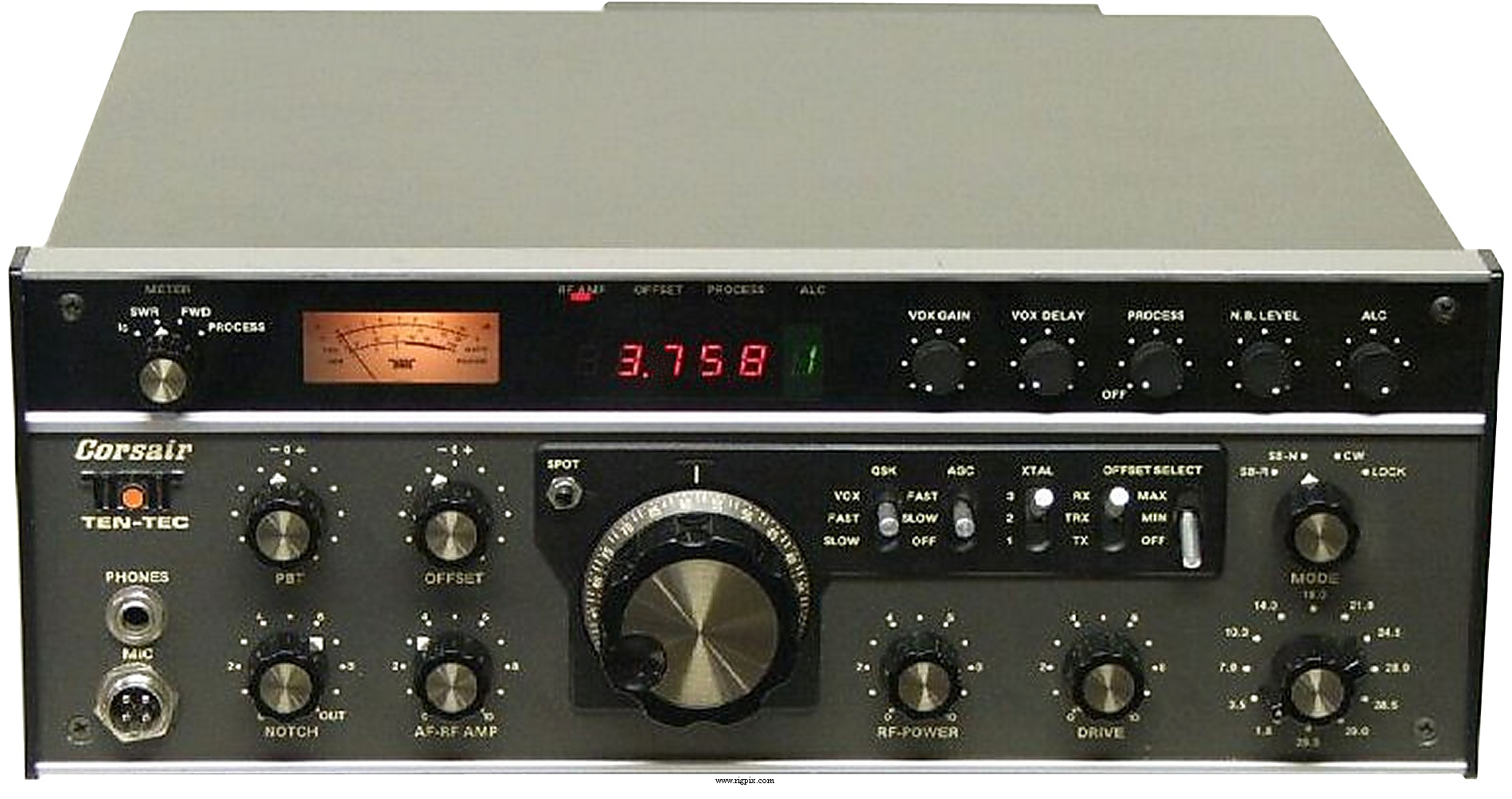

A picture of Ten-Tec Corsair (560)

SPECIFICATIONS

GENERAL
Type:Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 10-160 m + WARC
Tuning steps:
Frequency stability:±? ppm
Mode:SSB / CW
Channels / memory management:
Repeater shift / offset:No
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: Max ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:Full QSK. NB. PBT. VOX.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

Pwr
SSB (PEP):100 W
CW:100 W

100% duty cycle
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:USA, 1982-198x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
