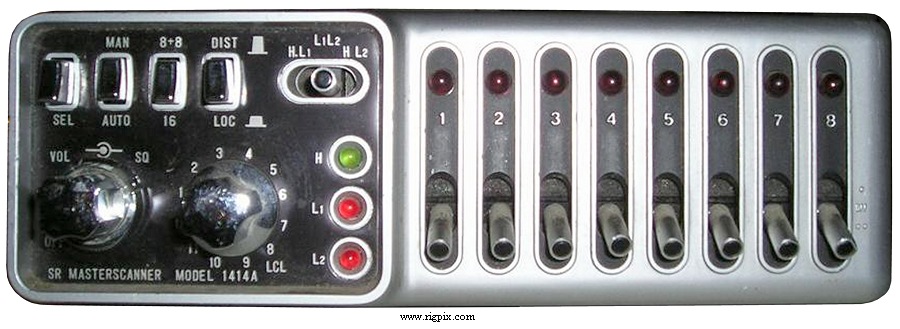

| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: |
75-85 / 150-160 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
16+12 regular @ 13 channels per second
XTAL controlled
|
| Power supply: | 13.8 VDC ±15% (Male barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 192*67*216 mm (7.56*2.64*8.5") |
| Weight: | 1.76 Kg (3.88 lb) |
| Other features: | Local/DX switch. Output jack for digital channel display. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
VHF Lo: 0.3 uV (20 dB S/N)
VHF Hi: 0.5 uV (20 dB S/N)
|
| Selectivity: | 15 KHz (-6 dB)
24 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm (side mounted), 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: |
FM-IF amp: TA7061AP
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
