| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: | 77.500-88.200 / 144.300-170.950 MHz |
| Tuning steps: | Channelized (Binary programmable in ? KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
16 regular
|

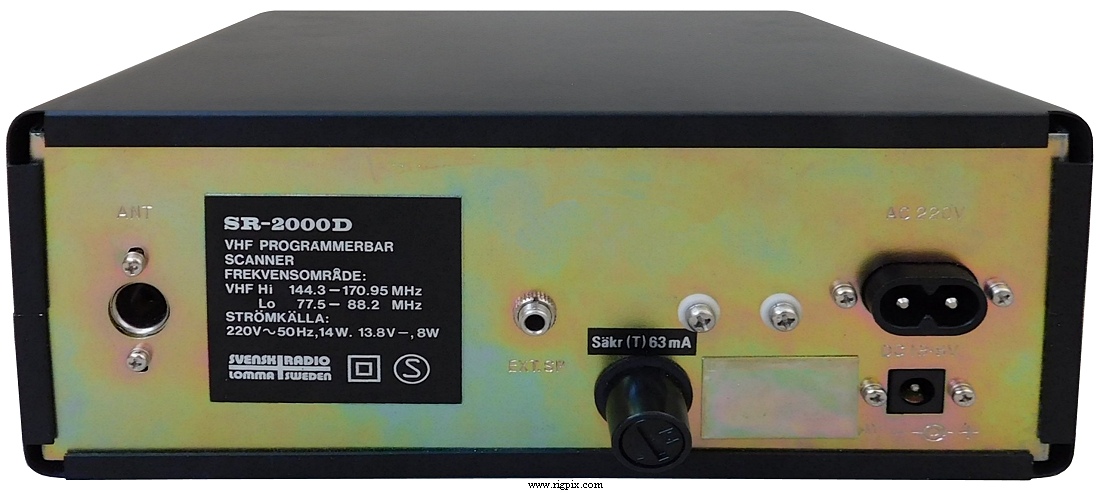

| Power supply: | Mains: 220 VAC (Male 2-pin jack)
or 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | Less than 14 W @ 220 VAC
Less than 580 mA @ 13.8 VDC |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola)
Built-in telescopic whip |
| Dimensions (W*H*D): | 200*79*207 mm (7.87*3.11*8.15") |
| Weight: | 2.1 Kg (4.63 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: Murata SFM455E
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: |
Static RAM: Three uPD5101LC
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
