Standard C-58

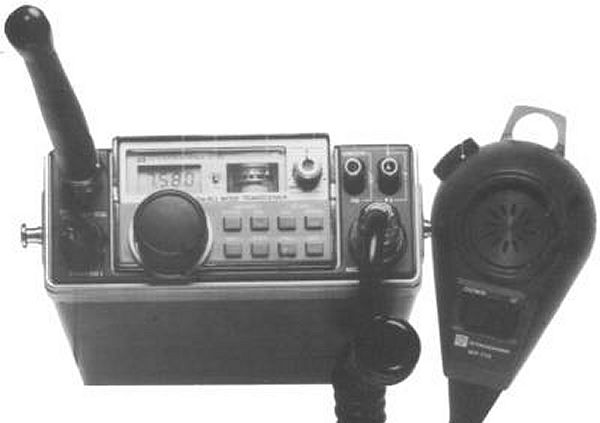

A picture of Standard C-58

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range: Europe
TX: 144-146 MHz
RX: 144-146 MHz
USA
TX: 144-148 MHz
RX: 144-148 MHz
Tuning steps:100 Hz, 1 / 5 /12.5 / 25 KHz
Frequency stability:50 Hz after 60 minutes warmup @ room temperature
Mode:FM / USB / CW
Channels / memory management: 5 regular
Repeater shift / offset:600 KHz
Power supply:9.6-16 VDC (Ten LR6 / AA NiCd batteries or nine alkaline batteries)
or 10-16 VDC external
Current drain / power consumption:RX: 90 mA (Squelched)
TX: Max 600 mA
Antenna impedance / connector:50 ohm / BNC and SO-239
Dimensions (W*H*D):129*52*191 mm (5.08*2.05*7.52")
Weight:1.25 Kg (2.76 lb)
Other features:NB. 1750 Hz repeater tone.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB/CW)
IF: 10.7 MHz
Double conversion superheterodyne (FM)
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:FM: 0.4 uV (12 dB SINAD)
SSB/CW: 0.3 uV (10 dB S/N)
Selectivity: FM
25 KHz (-60 dB)
SSB/CW
4.2 KHz (-60 dB)
Image rejection:
AF output power / speaker:1 W at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:1 W
Modulation system: FM: Reactance
SSB: Balanced
Max FM deviation (Factory set):5 KHz
Spurious emissions:Better than -60 dB
Microphone impedance / connector:600 ohm / 7-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1981-198x (Discontinued)
Additional info:New price 1981 in the UK: 235.00
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
C207M
C230
CLC8
CMB8
CPB58 (10)
CPB58 (25)
NC8
External speaker
Wall charger, 240 VAC
Carrying case with straps
Mobile bracket
10 W linear amplifier
25 W linear amplifier
NiCd battery pack
