Standard C-568

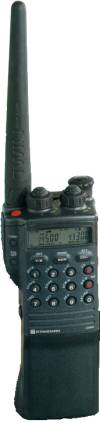

A picture of Standard C-568

SPECIFICATIONS

GENERAL
Type:Amateur VHF/UHF transceiver
Frequency range: Europe
TX: 144-146 / 430-440 / 1260-1300 MHz
RX: 144-146 / 430-440 / 1260-1300 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:FM
Channels / memory management:
Repeater shift / offset:?
Power supply:? VDC
Current drain / power consumption:RX: ? mA
TX: Max ? A
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):47*135*34 mm (1.85*5.32*1.34")
Weight:360 g (12.7 oz)
Other features:Twin RX.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighMidLow
2 m:2.5 W? W? mW
70 cm:2.5 W? W? mW
23 cm:35 mW35 mW35 mW
Modulation system:
Max FM deviation (Factory set):5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 19xx-19xx (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
