| GENERAL |
| Type: | RDF receiver |
| Frequency range: |
Standard: 118-410 MHz in four bands
| Civil airband: | 118.000-123.999 MHz |
| Marine VHF: | 156.000-162.025 MHz |
| Military airband: | 240.000-245.975 MHz |
| Cospas-Sarsat: | 406.022-410.000 MHz |
Optional extended range: 118-470 MHz in four bands
| Civil airband: | 118.000-136.993 MHz |
| Marine VHF: | 137.000-224.995 MHz |
| Military airband: | 225.000-399.975 MHz |
| Cospas-Sarsat: | 400.000-470.000 MHz |
|
| Tuning steps: | 5 / 8.33 / 25 KHz |
| Frequency stability: | ±2 ppm @ -30 to +80°C (-22 to +176°F) |
| Mode: | AM / FM / A3X / F1D / G2D / Cospas-Sarsat (400 bd) |
| Channels / memory management: | |
| Power supply: | Mains: 85-264 VAC
or 12-28 VDC |
| Current drain / power consumption: | 30 W @ 230 VAC |
| Built-in antennas: | No |
| External antenna impedance / connector: | - / RS485 |

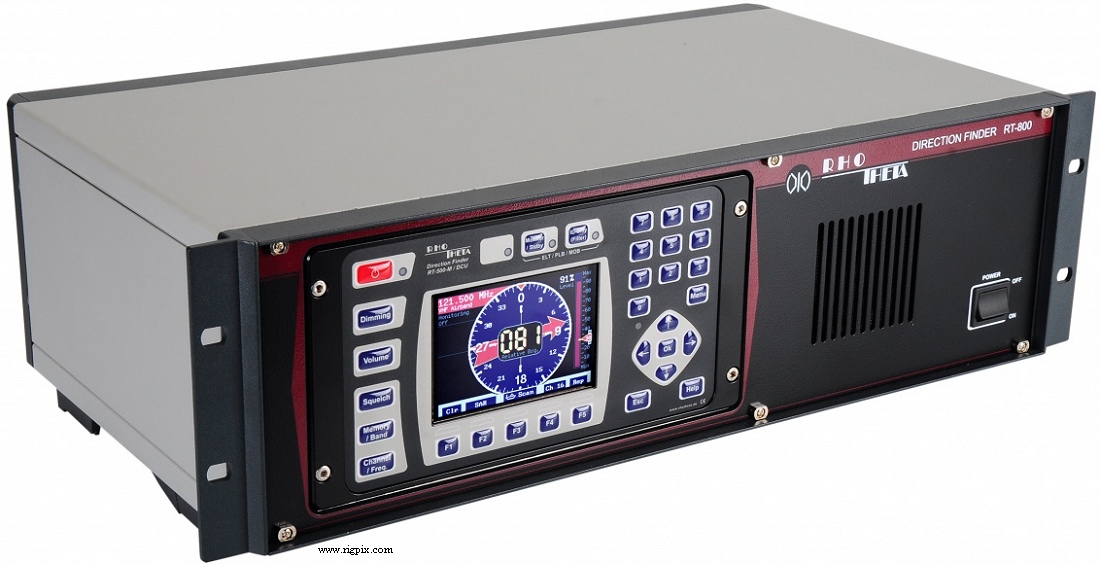

| Dimensions (W*H*D): | Display unit (DCU): 485*146*247 mm (19.1*5.75*9.72")

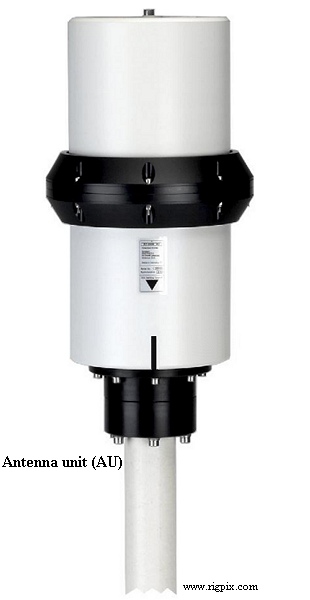

Antenna unit (AU): 201*810*201 mm (7.91*31.89*7.91") |
| Weight: | Display unit (DCU): 5.9 Kg (13 lb)
Antenna unit (AU): 5.2 Kg (11.46 lb) |
| Other features: |
Color TFT (320*240 pixels). RS-232C. Ethernet (NMEA and audio streaming).
Alarm relay. GPS option (RS422) |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
VHF/UHF: <0.1 uV (No S/N reference)
Cosapas-Sarsat: <0.15 uV (No S/N reference)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Germany, 201x-20xx |
| Additional info: |
Bearing accuracy: ±2°
|
| Related documents: |
Installation and configuration manual v1.04 (3.3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
