| GENERAL |

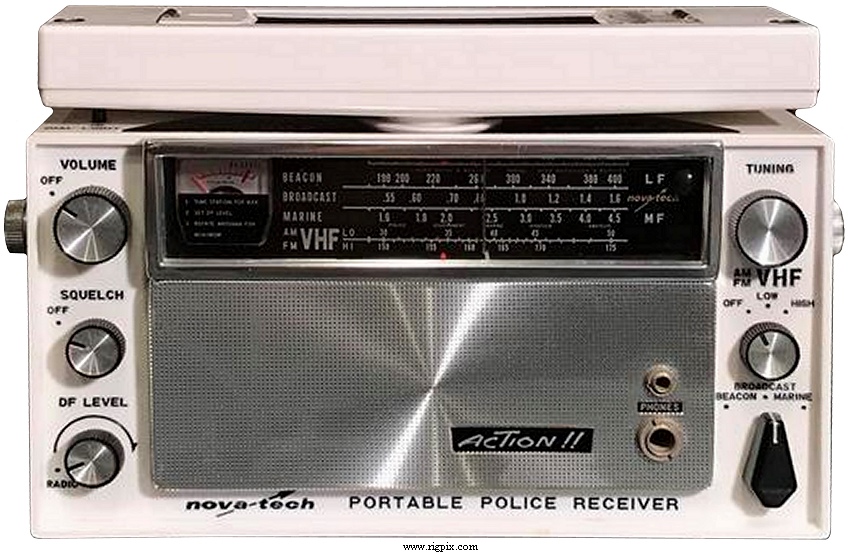

| Type: | RDF receiver |
| Frequency range: |
0.19-175 MHz in five bands
| Beacon: | 0.19-0.4 MHz |
| Broadcast: | 0.54-1.6 MHz |
| Marine: | 1.6-4.5 MHz |
| VHF Lo: | 30-50 MHz |
| VHF Hi: | 150-175 MHz |
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | AM / FM |
| Channels / memory management: | None |
| Power supply: | 6 VDC (Four LR6 / AA batteries)
or 6 VDC external |
| Current drain / power consumption: | Max ? mA |
| Built-in antennas: | Rotatable ferrite bar
Telescopic whips |
| External antenna impedance / connector: | ? / ? |
| Dimensions (W*H*D): | 203*127*64 mm (8*5*2.5") |
| Weight: | 1.13 Kg (2.5 lb) |
| Other features: | Squelch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 196x-196x (Discontinued) |
| Additional info: |
New price, april 1968 in the UK: £53.10
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
