Bendix Navigator 420

A picture of Bendix Navigator 420

SPECIFICATIONS

GENERAL
Type:RDF receiver
Frequency range: 0.19-4.5 MHz in three bands
Beacon:   0.19-0.4 MHz
Broadcast:   0.55-1.6 MHz
Marine:   1.5-4.5 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / CW
Channels / memory management:None
Power supply:6 VDC (Four LR6 / AA batteries)
or 6 VDC external
Current drain / power consumption:Max ? mA
Built-in antennas:Rotatable ferrite bar
External antenna impedance / connector:Hi-Z / ?
Dimensions (W*H*D):? mm (?")
Weight:907 g (2 lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:By Nova-Tech, 196x-196x (Discontinued)
Additional info: New price 1965 in the US: $99.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -

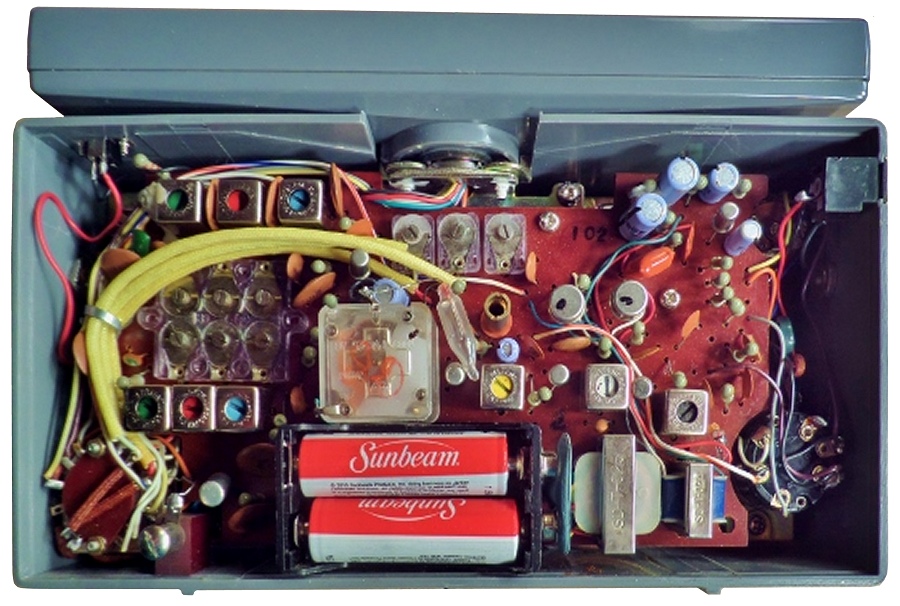

An inside picture of Bendix Navigator 420
