AirNav Radarbox ComStation

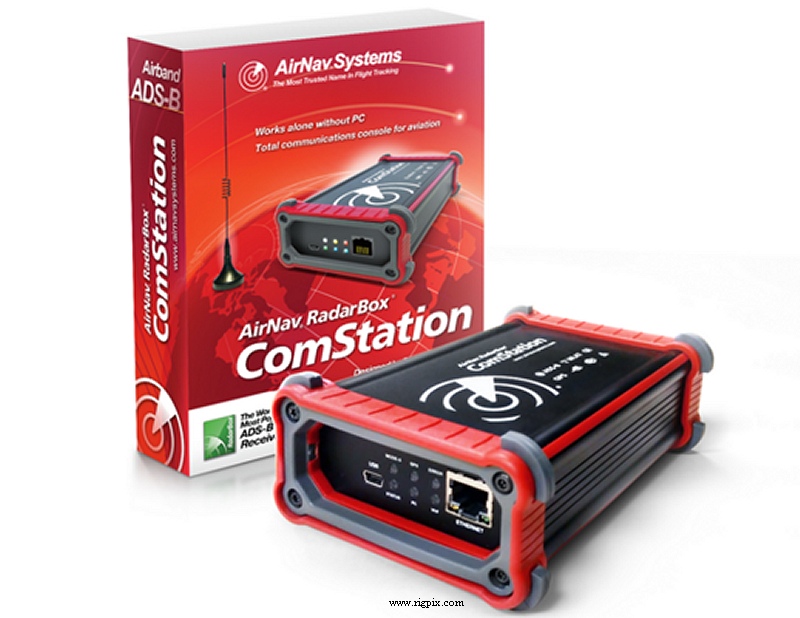

A picture of AirNav Radarbox ComStation

SPECIFICATIONS

GENERAL
Type:SSR Mode-S/ADS-B virtual radar receiver (SSR = Secondary Surveillance Radar)
Frequency range: 1090 MHz + 118-136 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:Digital, 1 Mb/s PPM + AM
Channels / memory management:
Power supply:5 VDC (Via USB-connector)
Current drain / power consumption:Max ? mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):150*?*90 mm (5.9*?*3.54)
Weight:? Kg (? lb)
Other features: Built-in GPS. Tri-band antenna included (1090 / 1575 / 118-136 MHz).
Connects to your LAN router for direct contact with the radarbox24 server.
No user PC connection. Can stream both flight data and voice comm's.
MLAT function with GPS timestamp.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:-
External speaker connector:-




MISCELLANEOUS
Manufactured:2015-20xx (Discontinued)
Additional info:
Related documents:Installation manual (3.4 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
