| GENERAL |

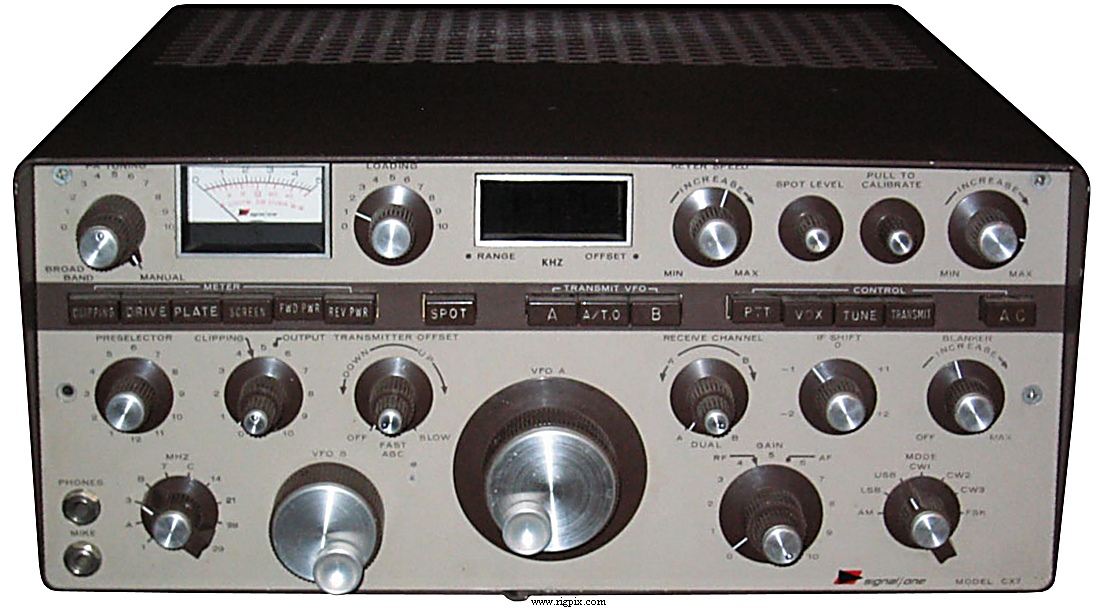

| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-160 m
RX: 10-160 m
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | AM / SSB / CW / FSK |
| Channels / memory management: |
|
| Repeater shift / offset: | No |
| Power supply: | Mains: 120 / 240 VAC |
| Current drain / power consumption: | RX: ? W
TX: Max ? W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: |
Dual VFO and dual receive within the same band. Built-in keyer and
full QSK. Nixie tube type frequency counter. Nice features for a
transceiver of this vintage.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | ? W |
| SSB (PEP): | 150 W |
| CW/FSK: | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1969-197x (Discontinued) |
| Additional info: |
New price, 1969 in the US: $1595.00
|
| Related documents: | RF final: RCA-8072 beam power tube |
| Modifications and fixes: | |
| Reviews: | QST: September 2021, page 94 |
| Options / Accessories: |
|
