| GENERAL |

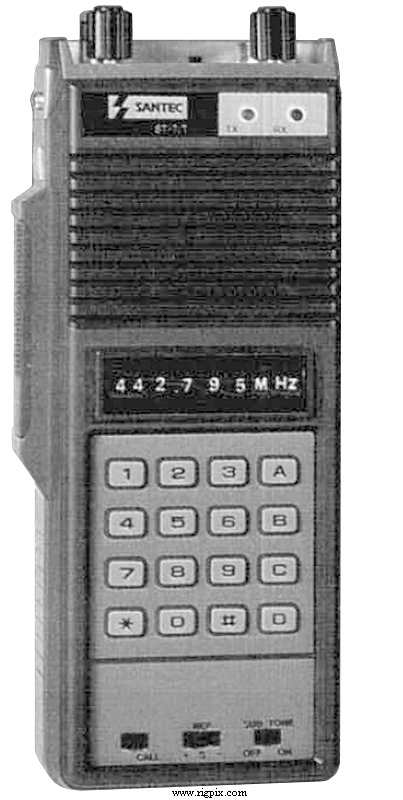

| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 440-450 MHz
RX: 440-450 MHz
|
| Tuning steps: | 5 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
|
| Repeater shift / offset: | ±5 MHz |
| Power supply: | 9.6 VDC (NiCd battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: | DTMF. CTCSS/PL encoder option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 70 cm: | 3 W | 1 W | 50 mW |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1981-1982 (Discontinued) |
| Additional info: |
New price, october 1981 in the US: $284.95
New price, february 1982 in the US: $279.00
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
