| GENERAL |

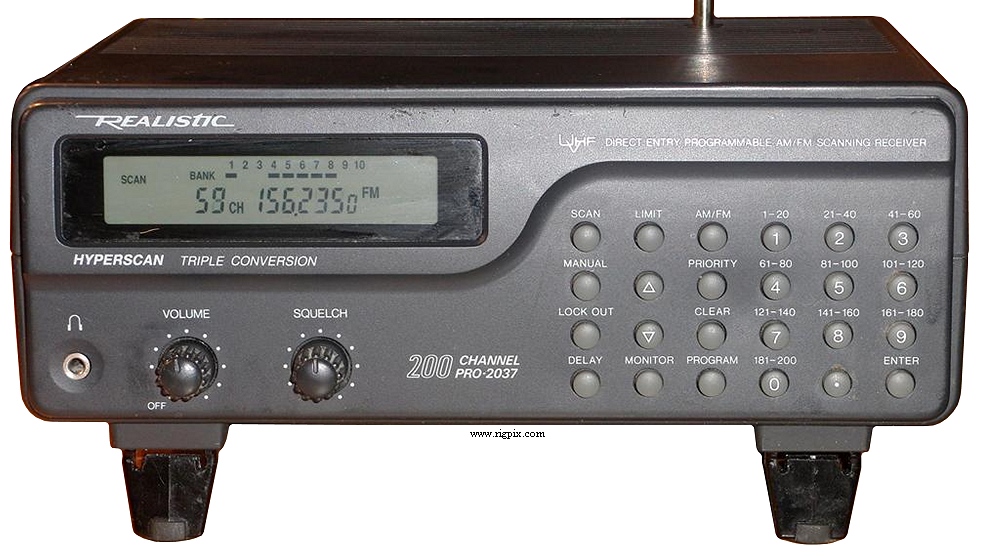

| Type: | VHF/UHF receiver/scanner |
| Frequency range: | 68-88 / 118-174 / 380-512 / 806-960 MHz (Europe) |
| Tuning steps: | 5 / 12.5 / 25 KHz (Depending on band) |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
200 regular in 10 banks @ 25 channels per second
10 monitor
1 priority
|
| Power supply: | Mains: 230 VAC
or 13.8 VDC (Barrel connector, center positive) |
| Current drain / power consumption: | Max 13 W @ 230 VAC
Max 8 W @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 214*83*173 mm (8.42*3.27*6.81") |
| Weight: | 1.1 Kg (2.42 lb) |
| Other features: | 10 dB attenuator. HyperScan. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 257.5 MHz
2nd IF: 21.4 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
AM (20 dB S/N, 60% modulation)
108-137 MHz: 2 uV
FM (20 dB S+N/N)
68-88 MHz: 1 uV
137-174 MHz: 1 uV
380-512 MHz: 1 uV
806-960 MHz: 2 uV
|
| Selectivity: | 20 KHz (-6 dB)
40 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By GRE), 1994-199x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
