Realistic Pro-13 (20-157)

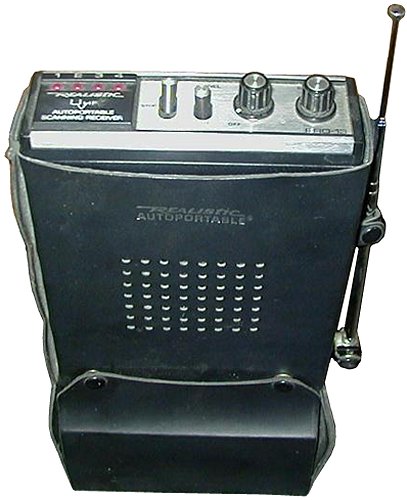

A picture of Realistic Pro-13 (20-157)

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range: 148-174 / 450-470 MHz
Tuning steps:Channelized
Frequency stability:? ppm
Mode:FM
Channels / memory management: 4 regular
XTAL controlled
Power supply:12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):127*38*168 mm (5*1.5*6.62")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:1974-1975 (Discontinued)
Additional info:New price 1975 in the US: $119.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
20-158 Carry case/battery pack
