RFspace Cloud-IQ

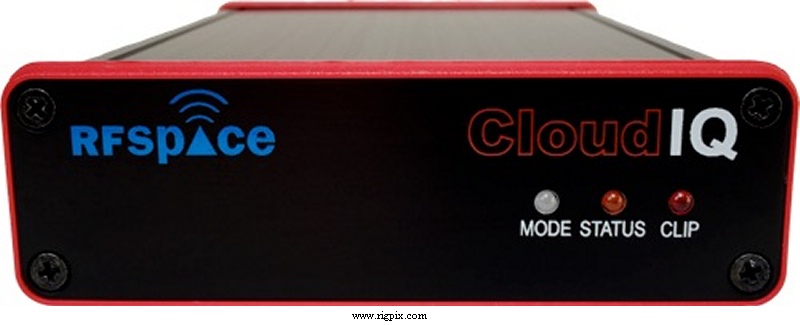

A picture of RFspace Cloud-IQ

SPECIFICATIONS

GENERAL
Type:HF/VHF SDR receiver
Frequency range: 0.009-56 MHz
Tuning steps:Depending on software
Frequency stability:? ppm
Mode:AM / AM-sync / FM / NFM / WFM / SSB / CW / DSB / ASK / OOK / PSK31
Channels / memory management: Depending on software
Power supply:5 VDC (Barrel connector)
Current drain / power consumption:Max 800 mA
Antenna impedance / connector:50 ohm / Two SMA
Dimensions (W*H*D):102*31*122 mm (4*1.2*4.8")
Weight:? g (? oz)
Other features: LAN connectivity. Local or remote "cloud mode". TCXO. RS232C.
Built-in remote server.




RECEIVER SECTION
Receiver system: Direct sampling
Sensitivity:
Selectivity:
Image rejection:
Output IQ sample rate:3.375 KHz to 1.8 MHz
Output IQ bandwidth:
AF output power / speaker:
External speaker connector:




MISCELLANEOUS
Manufactured:USA, 2015-201x
Additional info: New price 2015 in the UK: £569.950
New price 2015 in the US: $629.00
Related documents: Getting started v0.5 (4.6 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

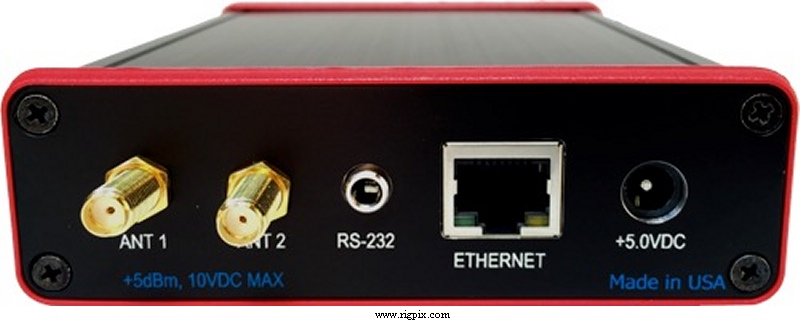

A rear picture of RFspace Cloud-IQ
