| GENERAL |

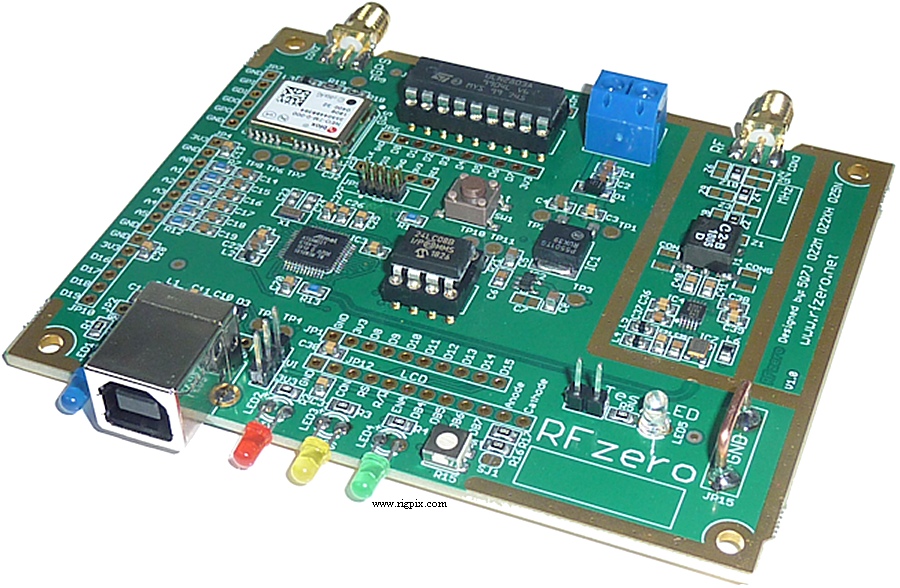

| Type: | Conventional RF development board |
| Frequency range: | 0.003-280 MHz |
| Tuning steps: | Depending on software |
| Frequency stability: | 10 ppm (XTAL) or 1 ppb (GPSDO) |
| Mode(s): | Various |
| Channels / memory management: | - |
| Power supply: | 5 VDC (Via USB) or screw terminals |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / SMA (Also one SMA for GPS antenna) |
| Dimensions (W*H*D): | 100*79 mm (3.94*3.11") |
| Weight: | ? g (? oz) |
| Other features: | USB-B jack. Onboard GPS receiver. |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 20 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | |
| Spurious emissions: | Better than -? dB |
| Input impedance / connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 2019-202x |
| Additional info: | |
| Related documents: |
RFzero presentation - 2025-02-21 (2.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
