| GENERAL |

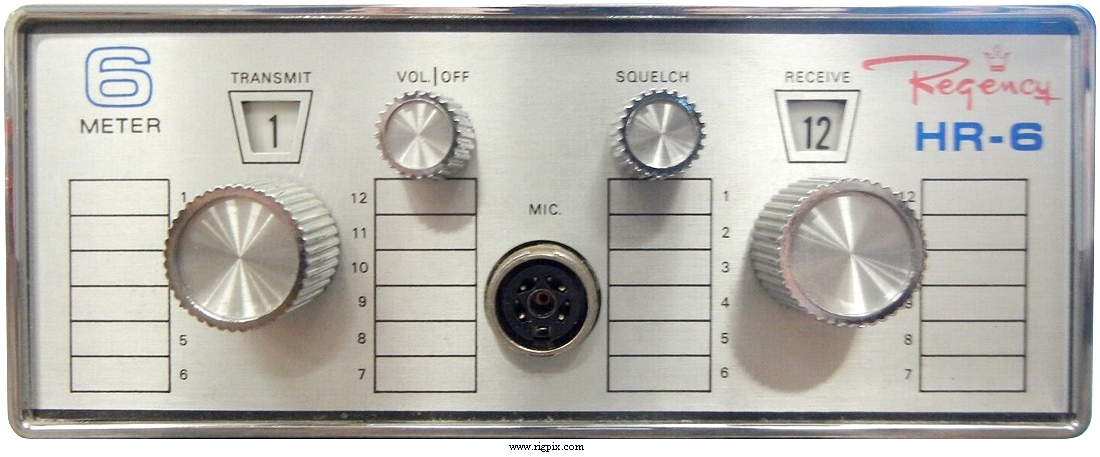

| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 52-54 MHz
RX: 52-54 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ?% |
| Mode: | FM |
| Channels / memory management: |
12 regular TX
12 regular RX
Individually selectable
XTAL controlled
|
| Repeater shift / offset: | Depending on XTALs |
| Power supply: | 13.8 VDC (Male 4-pin Jones connector) |
| Current drain / power consumption: | RX: 0.38-1 A
TX: Max 4.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.35 uV (20 dB quieting) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | ±16 KHz (-6 dB)
±32 KHz (-50 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at 10% distortion / 4 ohm |
| External speaker connector: | Screw terminals, 3-4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
25 W
|
| Modulation system: | Phase modulation |
| Max FM deviation (Factory set): | ±10 KHz (±0-15 KHz adjustable) |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | Hi-Z / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1972-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (524 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
