| GENERAL |

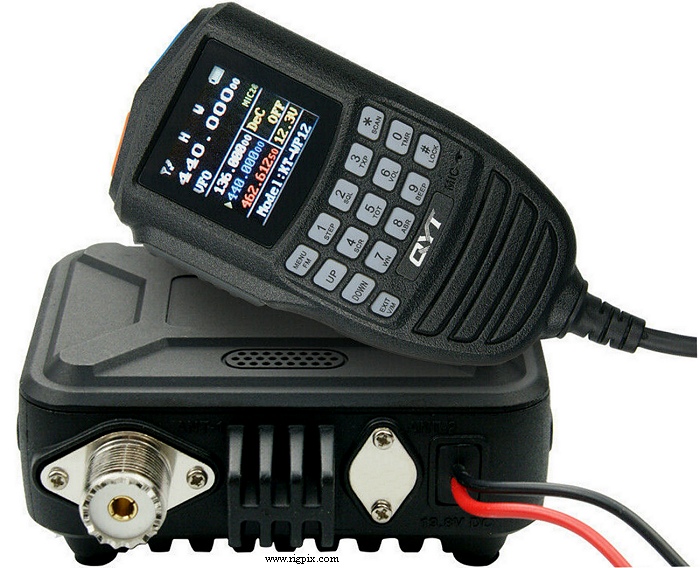

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 144-148 / 430-440 MHz
RX: 144-148 / 430-440 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 25 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: | 200 regular |
| Repeater shift / offset: | Freely programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Transceiver: 98*35*118 mm (3.86*1.38*4.65")
Control mike: ? mm (?") |
| Weight: | Transceiver: 890 g (1.96 lb)
Control mike: ? g (? oz) |
| Other features: |
Color TFT. CTCSS/PL, DCS, 2-tone, 5-tone and DTMF.
Battery voltage meter. Voice prompt (Speech synthesizer).
PC-programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
FM: 0.25 uV (No reference)
NFM: 0.35 uV (No reference)
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 25 W | ? W |
| 70 cm: | 20 W | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2021-202x |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
