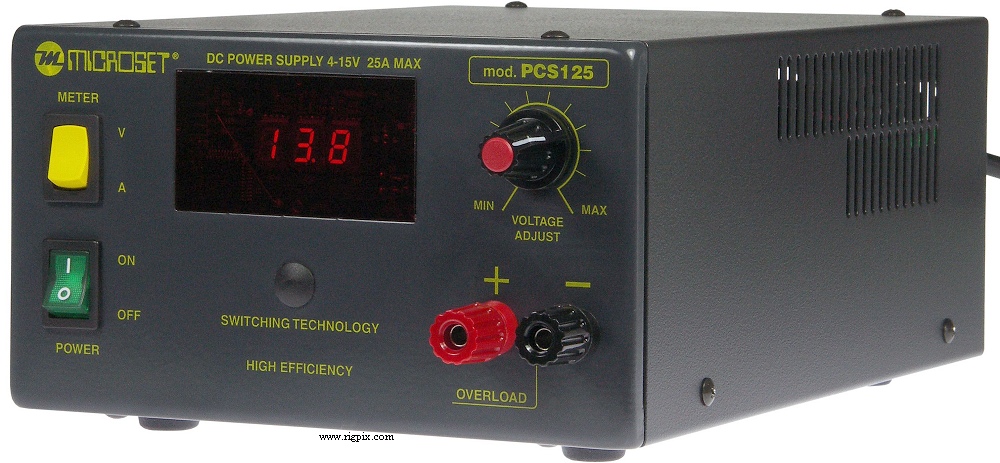

Microset PCS-125
SPECIFICATIONS
| Type: | Switch mode power supply |
| Input voltage: | 190-250 VAC (110 VAC option) |
| Output voltage: | 4-15 VDC |
| Output current: | Max 25 A |
| Ripple: | 20 mV |
| Voltage fluctuation: | ±0.5% @ 100% load |
| Efficiency: | |
| Dimensions (W*H*D): | 165*100*255 mm (6.5*3.94*10.04") |
| Weight: | 2 Kg (4.41 lb) |
| Manufactured: | Italy, 20xx-20xx (Discontinued) |
| Additional info: |
Low noise cooling fan. Overload and overtemperature
protection. Digital V/A meter.
|
