Kenwood KPS-15

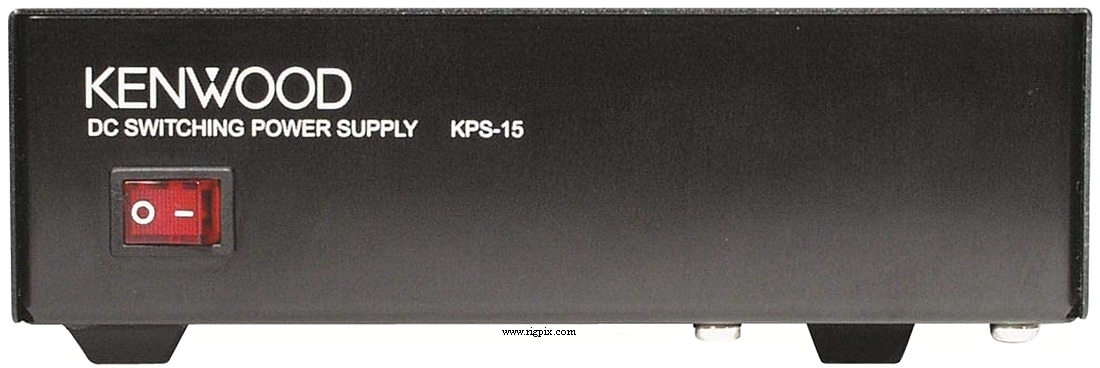

A picture of Kenwood KPS-15


Type:Switch mode power supply
Input voltage:115 / 230 VAC, internally selectable (3-pin IEC C14 connector)
Output voltage:13.8 VDC
Output current:23 A (25 A peak)
Ripple:<15 mV (RMS)
Voltage fluctuation:
Dimensions (W*H*D):183*56*221 mm (7.2*2.2*8.7")
Weight:1.5 Kg (3.3 lb)
Manufactured:Taiwan, 20xx-20xx
Additional info: Over voltage and over current protection
Temperature controlled cooling fan
Related documents:
Modifications and fixes:

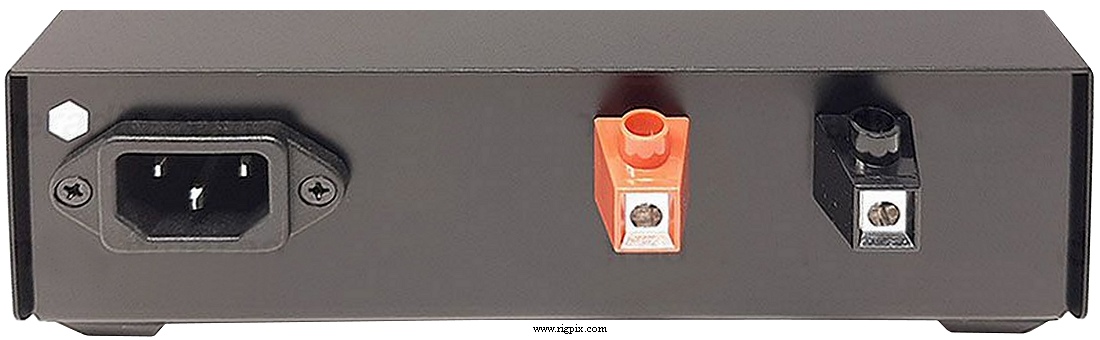

A rear picture of Kenwood KPS-15
