| GENERAL |

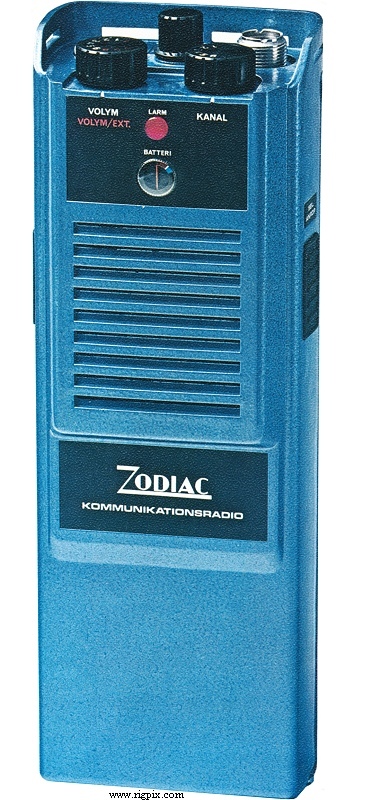

| Type: | Professional land mobile transceiver |
| Frequency range: |
146-174 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
6 regular
Two XTALs per channel
|
| Repeater shift / offset: | Depending on XTALs (Max 1 MHz offset) |
| Power supply: | 12 VDC (Eight LR6/ AA batteries or MAHS ackupack)
or 12 VDC external |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 85*245*60 mm (3.35*9.64*2.36") |
| Weight: | 1.08 Kg (2.38 lb) |
| Other features: | Battery meter. Selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.3 uV (No SINAD reference) |
| Squelch sensitivity: | |
| Selectivity: | 90 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1975-197x (Discontinued) |
| Additional info: |
New price 1975 in Sweden: SEK 3405:-
New price 1977 in Sweden: SEK 3995:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
2x5/500 MAHS
BL-403
MO
RCTR
|
Rechargeable ackupack
Battery charger for the MAHS
Speaker-microphone
Internal selcall unit
|
|
